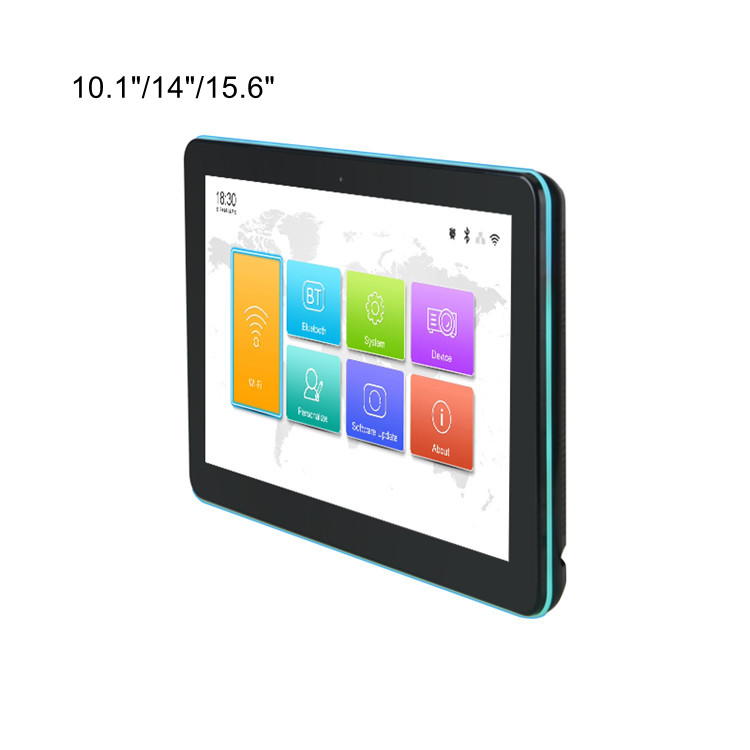

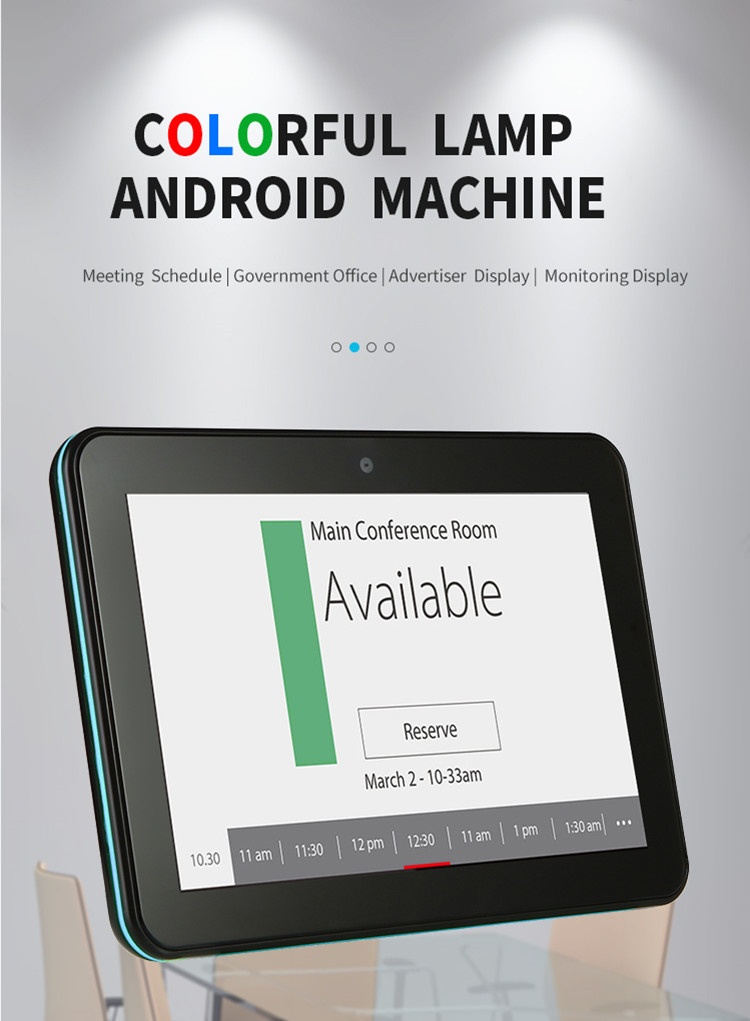

10.1 14 15.6 inch Touch Screen Colorful Lamp Conference Booking Meeting Room Wall Mount Smart Home Linux Android Tablet For in wall
Additional information
| Size | 10.1/14/15.6 inch optional |
|---|---|
| Resolution | 1280*800/1920*1080 |
| CPU | RK3588/RK3576/RK3399/RK3568/RK3566/RK3288/A527/A133 optional |
| RAM/ROM | 8GB/4GB/2GB/1GB RAM, 128GB/64GB/32GB/16GB/8GB ROM |
| Operation System | Android 14.0/13.0/11.0/10.0/9.0/8.1/7.1/6.0 or linux optional |
| Function | POE/4G LTE/GPS/NFC/RFID/RS485/RS232 |
MULTI GOLD

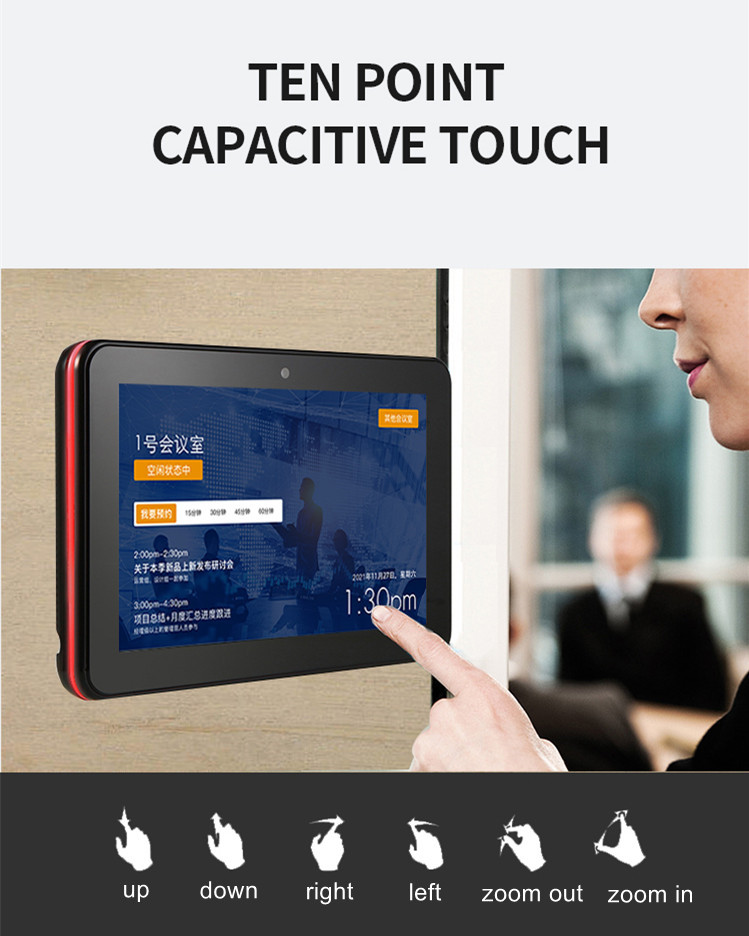

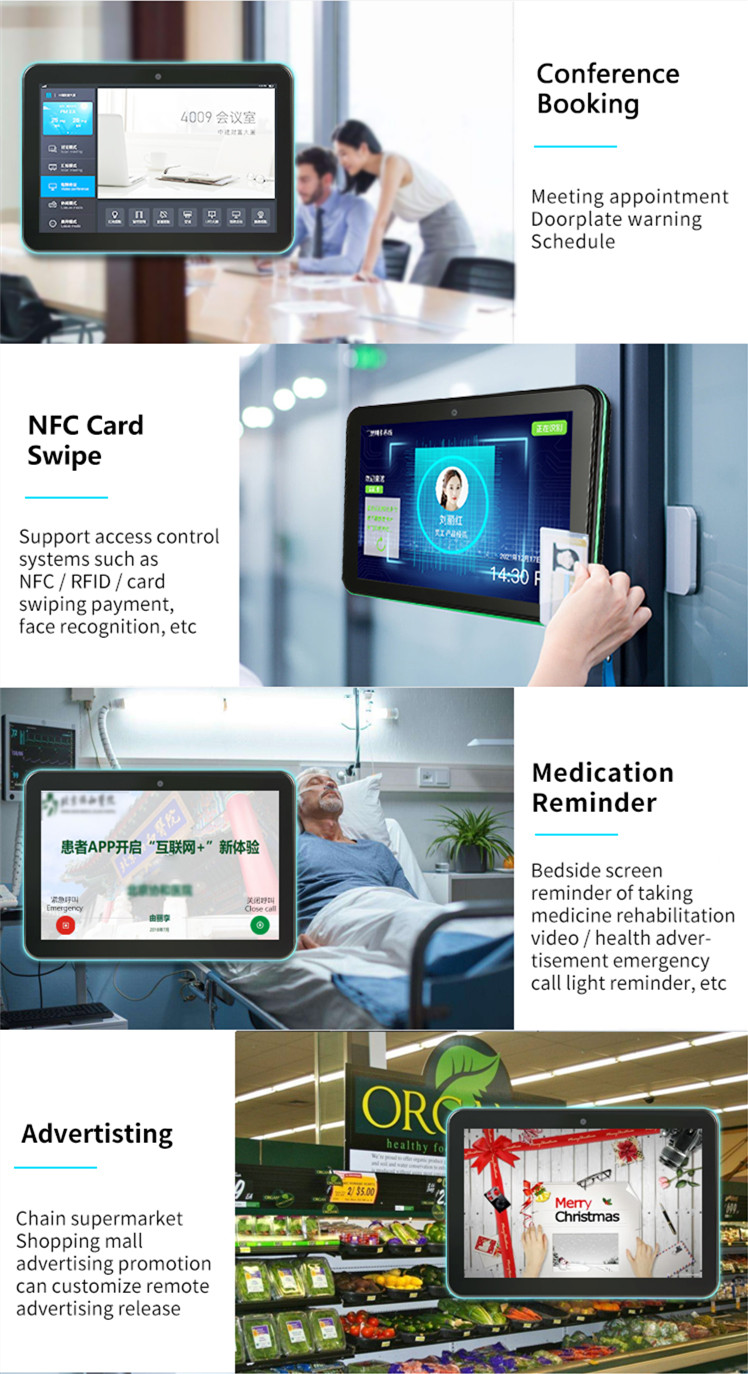

Customization Android / Linux based Monitor (7” – 55” ) with IPS FHD Capacitive touch screen, VESA hole for mounting, the high stability supporting 7 days /24 hours working, the rich interfaces to meet the needs of different external devices. It’s ideal for advertising display, PoS machine, Kitchen display, information checking kiosk, spinning bike fitness and so on. It have been widely use in various industry such as healthcare, fitness, retail, financial services, restaurant, education, manufacturing.
Product Details:
|
Model
|
MGD102
|
|
Screen
|
10.1 inch (optional 14/15.6 inch)
|
|
Resolution
|
IPS 1280*800 (1920*1080 for 14/15.6″)
|
|
Brightness
|
250 cdm2
|
|
Contrast ratio
|
1000/1
|
|
Screen contrast ratio
|
16:10
|
|
Display area
|
217*136mm
|
|
CPU
|
Rockchip RK3588/RK3576/RK3399/RK3568/RK3566/RK3288/A527/A133 CPU
Optional 1.6Ghz-2.4Ghz
|
|
RMA/ROM
|
8GB/4GB/2GB/1GB RAM, 8GB/16GB/32GB/64GB/128GB Optional
|
|
OS
|
Android 14.0/13.0/12.0/11.0/9.0/8.1/7.1/6.0 or Linux optional
|
|

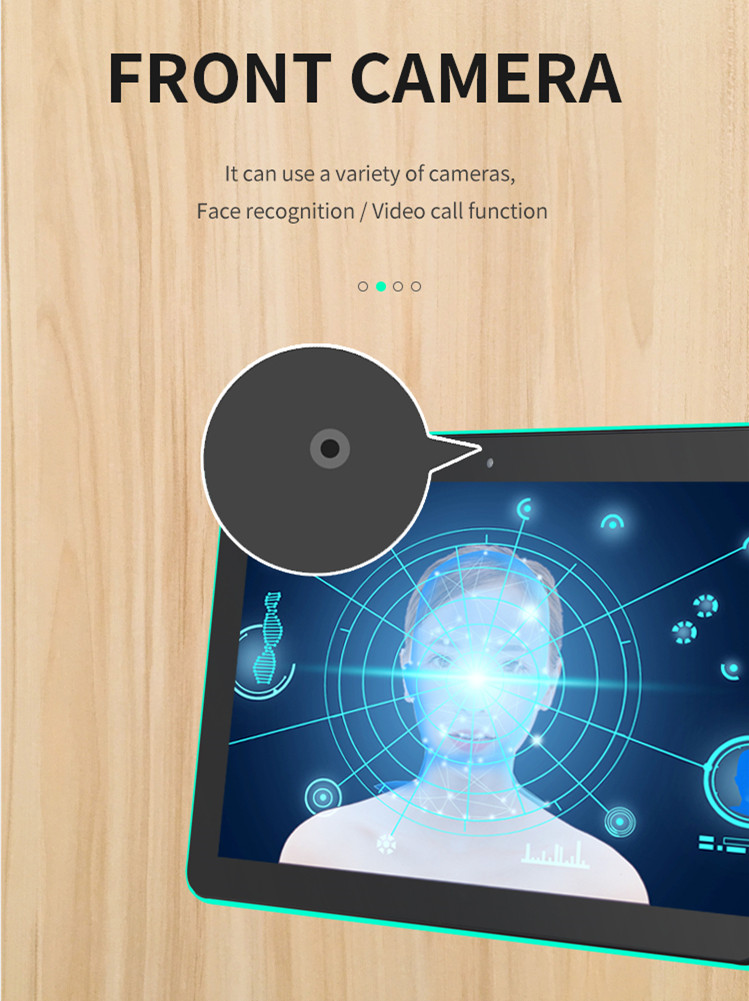

Camera
|
Standard configuration: 2.0MP (5.0MP optional)
|
|
Network
|
WiFi 802.11b/g/n
|
|
Vesa
|
Support
|
|
BT
|
Support
|
|
Interace
|
2*USB 2.0 (support U disk, mouse, keyboard, printer etc)
|
|
1×TF card slots (max support 32GB)
|
|
|
1xHDMI out
|
|
|
1*RJ45
|
|
|
1*3.5mm Headphone Jack
|
|
|
1*5.5*2.1mm DC Jack
|
|
|
RJ45
|
|
|

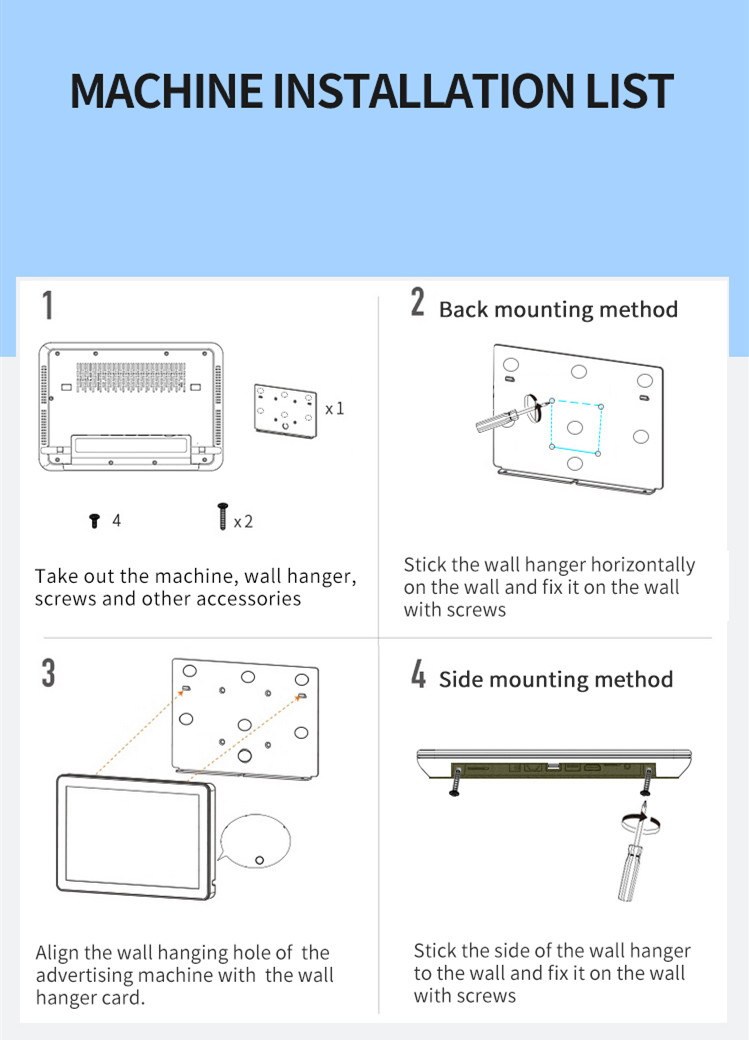

Special wall hanger
|
1
|
|

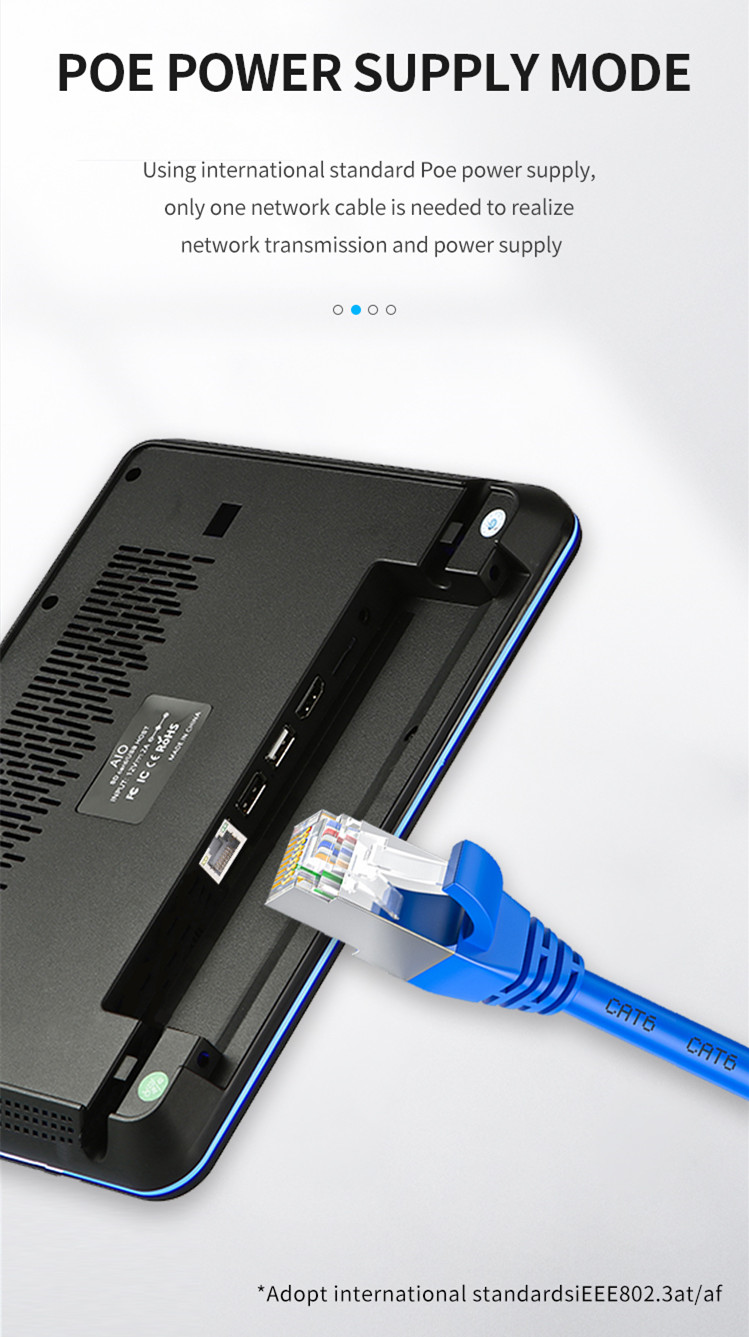

POE
|
Support
|
|
Surround lights,RFID
|
Optional
|
|
Speaker
|
2×2W speakers
|
|
Language
|
Support Multiple languages
|
|
Charger
|
12V/2A
|
|
Multi-media
|
MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV.etc
|
|
MP3,WMA,AAC.etc
|
|
|
JPEG,JPG
|
|
|
Net Weight
|
1.2KG
|
Serious Quality Control Process
QC testing one by one in-process production line —> 72 hours aging testing —> OQC Inspection before shipment.
Product Certificate
