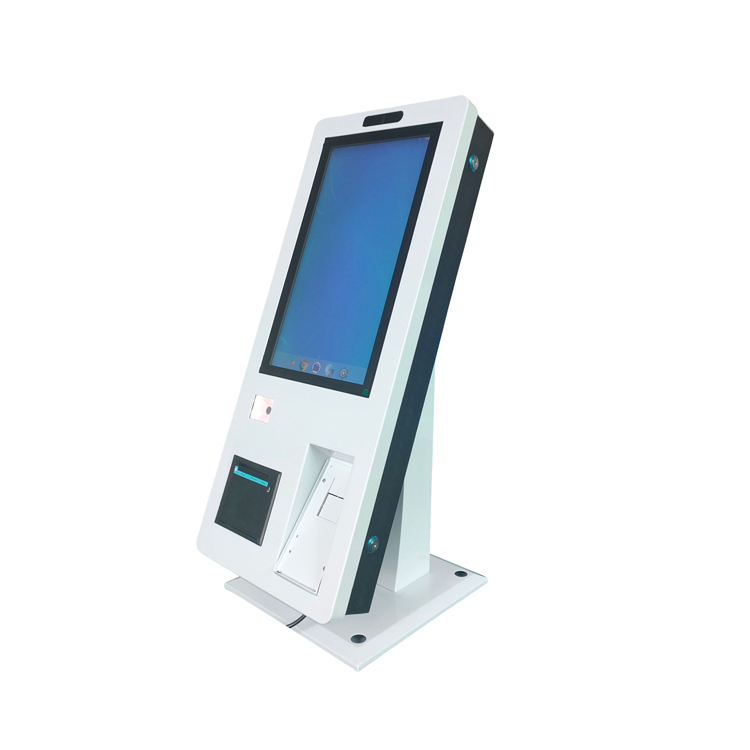

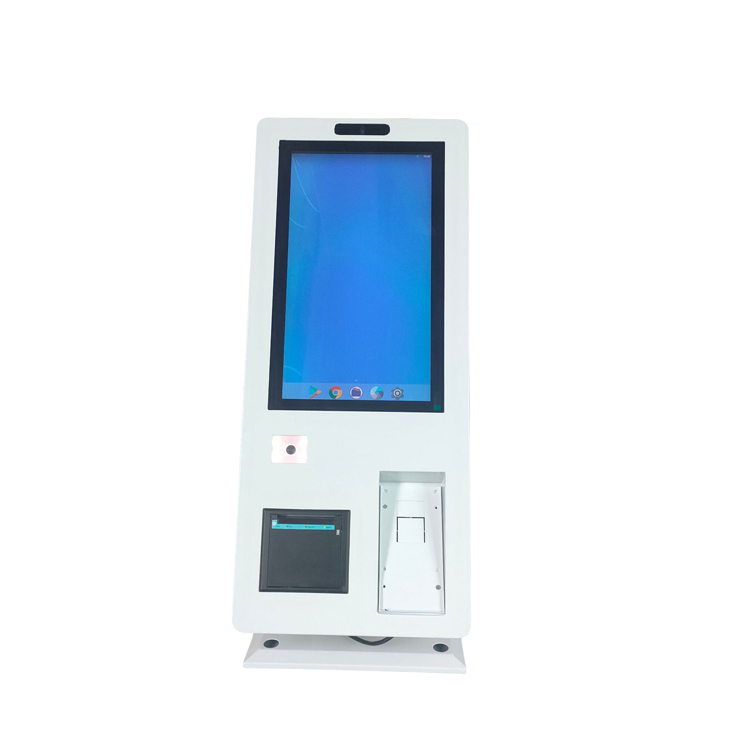

15.6 17.3 18.5 21.5 23.6 27 32 inch Desktop Touch Screen Self Service Cashier Checkout All In One Tablet
Additional information
| Size | 15.6/17.3/18.5/21.5/23.6/27/32 inch optional |
|---|---|
| Resolution | 1920*1080 |
| CPU | RK3588/RK3399/RK3568/RK3566/I3/I5/J1900 optional |
| RAM/ROM | 2GB/4GB/8GB/16GB RAM, 32GB/64GB/128GB/256GB ROM |
| Operation System | Android 12.0/11.0/9.0/8.1/Windows/Linux optional |
MULTI GOLD
Customization Android / Linux based Monitor (15.6” – 85” ) with IPS FHD Capacitive touch screen, VESA hole for mounting, the high stability supporting 7 days /24 hours working, the rich interfaces to meet the needs of different external devices. It’s ideal for advertising display, PoS machine, Kitchen display, information checking kiosk, spinning bike fitness and so on. It have been widely use in various industry such as healthcare, fitness, retail, financial services, restaurant, education, manufacturing.
Product Details:
Flexible Configuration Choice:
Flexible CPU Choice: RK3588/RK3399/RK3568/RK3568/I3/I5/J1900.etc
Choose the suitable performance processor configuration to meet your software running needs!
RK3588 |
RK3399 |
RK3568 |
RK3566 |
RK3288 |
RK3128 |
|
CPU |
Quad core Cortex-A76 + Quad-core Cortex-A55 |
Dual-core Cortex-A72 up to 1.8GHz Quad-core Cortex-A53 up to 1.4GHz |
Quad-core Cortex-A55 up to 2.0GHz |
Quad-Core ARM Cortex-A55 |
Quad-core Cortex-A17 up to 1.8GHz |
Quad Core Cortex-A7 up to 1.2GHz |
GPU |
Mali-G610 MC4，OpenGL ES 1.1/2.0/3.1/3.2，Vulkan 1.1，1.2，OpenCL 1.1,1.2,2.0 |
Mali-T860 GPU，OpenGL ES1.1/2.0/3.0/3.1, OpenCL，Supports AFBC |
Mali-G52 GPU，Support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1 |
Mali-G52 GPU，Support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1 |
Mali-T764 GPU，Support OpenGL ES 1.1/2.0/3.1, OpenCL, DirectX9.3 |
Mali-400MP2 GPU, support OpenGL ES1.1/2.0 |
NPU |
6TOPS NPU ，triple core, support int4/int8/int16/FP16/BF16/TF32 acceleration |
/ |
/ |
/ |
/ |
/ |
Multi-Media |
H.265/H.264/AV1/AVS2 etc. multi video decoder, up to 8K@60fps, 8K@30fps video encoders for H.264/H.265 |
4K VP9 and 4K 10bits H265/H264 video decoders, up to 60fps，1080P video encoders for H.264 and VP8 |
4K 60fps H.265/H.264/VP9 decoder，1080P 60fps H.265/H.264 encoder |
4K 60fps H.265/H.264/VP9 decoder，1080P 60fps H.265/H.264 encoder |
4K 10bits H265/H264 video decoders，1080P video encoder for H.264 and VP8 |
1080P video encoding for H.264,VP8 |
RAM |
4GB/8GB/16GB |
4GB |
2GB/4GB/8GB |
2GB/4GB |
2GB/4GB |
1GB/2GB |
ROM |
32GB/64GB/128GB |
16GB/32GB/64GB |
16GB/32GB/64GB/128GB |
16GB/32GB |
16GB/32GB |
8GB/16GB |
System |
Android 12 / Linux |
Android 9 / Android 11 |
Android 11 / Linux |
Android 11 / Linux |
Android 8.1 / Linux |
Android 6.0 |
Serious Quality Control Process
QC testing one by one in-process production line —> 72 hours aging testing —> OQC Inspection before shipment.
|
Function
|
Self-service Ordering
|
|
Installation
|
Floor Standing/wall mounted/Table Stand, (Customized service optional）
|
|
Resolution
|
1920*1080
|
|
Touch screen
|
Capacitive touch screen
|
|
Interface
|
USB,RJ45,HDM1,VGA,3.5MM Audio
|
|
Speaker
|
2*5W
|
|
ROM/ROM
|
2GB/4GB/8GB RAM, 8GB/16GB/32GB/64GB/128GB ROM Optional
|
|
Operating System
|
Windos7/win8/win10 Android,Linux
|
|
Interface
|
USB,RJ45,HD-MI.etc
|
|
Printer
|
Thermal printing
|
|
QR Code Scanner
|
Two-dimensional code scanning/Bar code scanning
|
|
NFC/POS TERMINAL
|
Reserve installation bit optional
|
