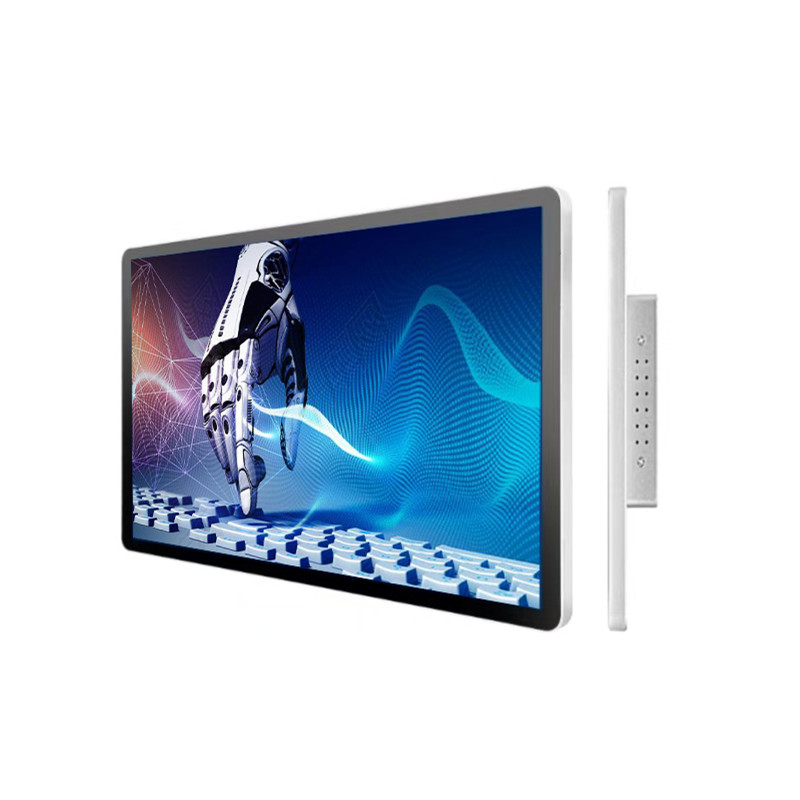

15.6" Full Laminated IP65 Waterproof Android Touch Monitor – Medical & Beauty Grade | Full Aluminum Case
Additional information
| Size | 10.1" / 13.3" / 15.6" optional |
|---|---|
| Resolution | 1280*800/1920*1200/1920*1080 |
| CPU | RK3588/RK3576/RK3399/RK3568/RK3566/RK3288/A527/A133 optional |
| RAM/ROM | 1GB/2GB/4GB/8GB RAM, 16GB/32GB/64GB/128GB optional |
| Operation System | Android/Linux optional |
MULTI GOLD
Customization Android / Linux based Industrial Touch Monitors (7” – 55” ) with capacitive touchscreen, IP67 water-proof, 3mm embedded concave edge, the high stability supporting 7 days /24 hours working, the rich interfaces to meet the needs of different external devices. It’s ideal for integration into vending machines, Interactive Kiosks, Self-service terminal, Game Table, laser beauty equipment, automation industrial equipment and so on. It have been widely use in various industry such as healthcare, retail, financial services, restaurant, education, manufacturing.
Product Details:
Key Features:

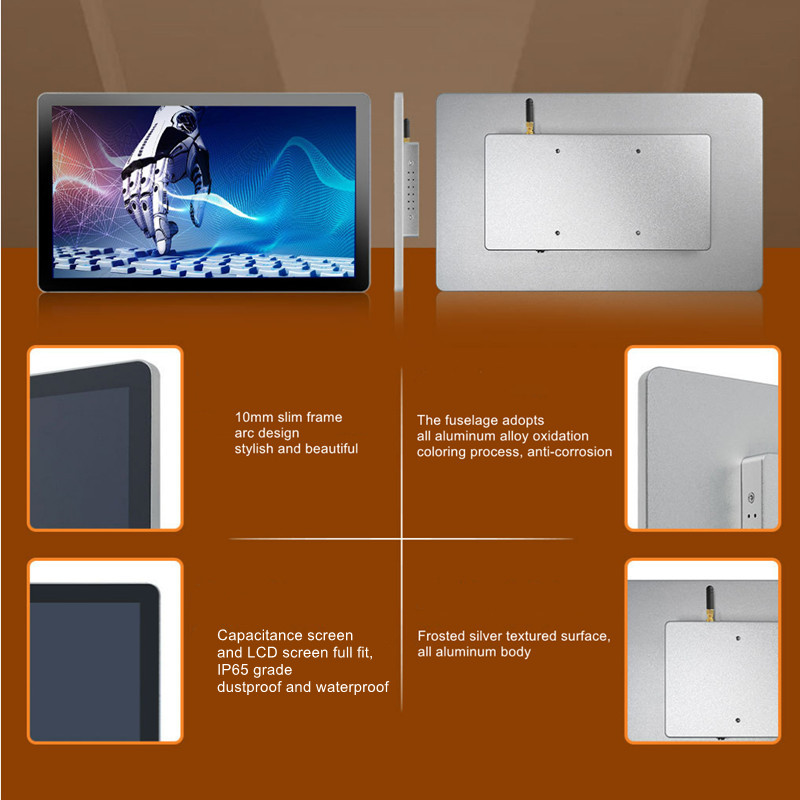

•10.1/13.3/15.6 Inch Full Laminated Capacitive Touch Screen – Smooth, anti-glare surface with high clarity.
•IP65 Front Panel Waterproof & Dustproof – Suitable for cleanroom, clinics, and wet environments.

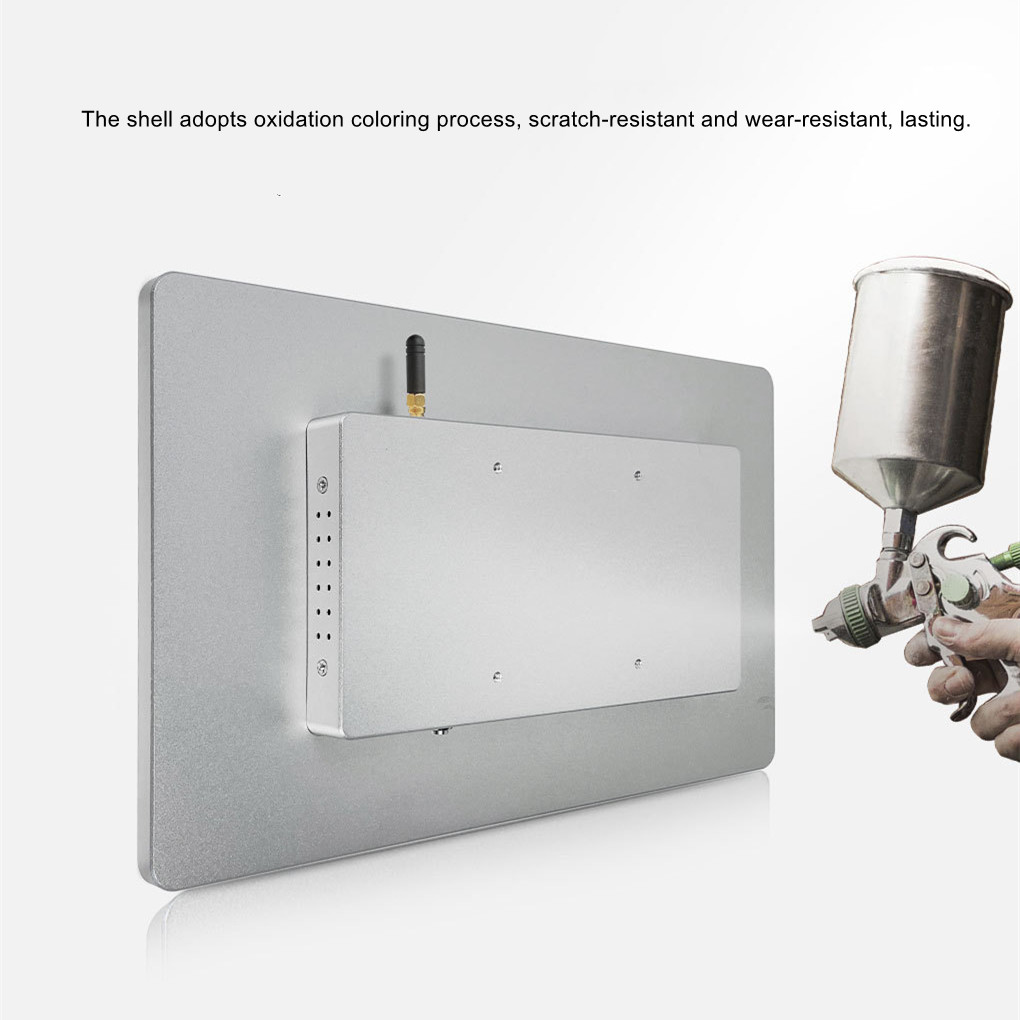

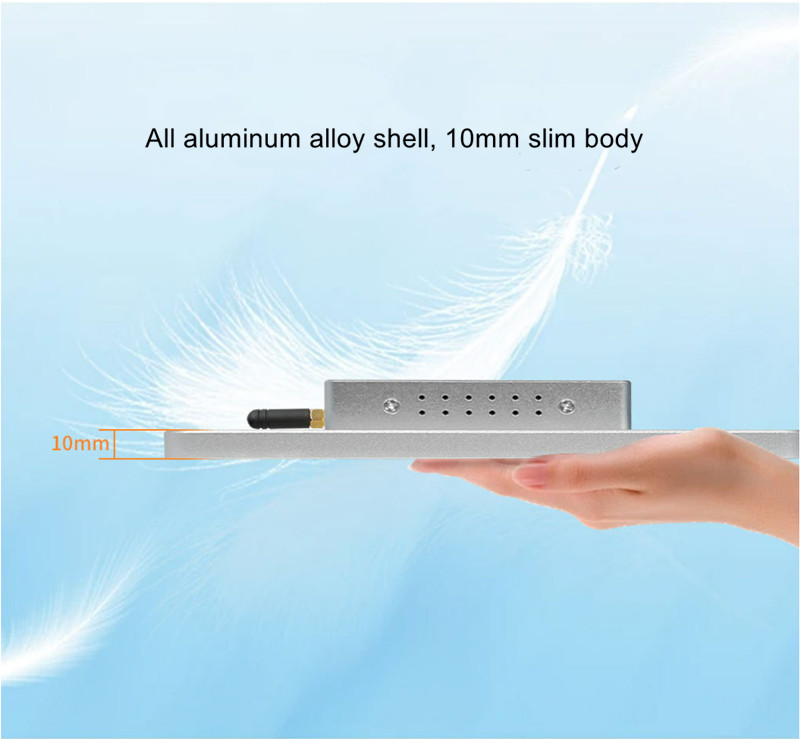

•Full Aluminum Alloy Case – Durable, anti-corrosion, lightweight, and elegant appearance.
•Android 11 System (Customizable) – Compatible with most healthcare and beauty software.

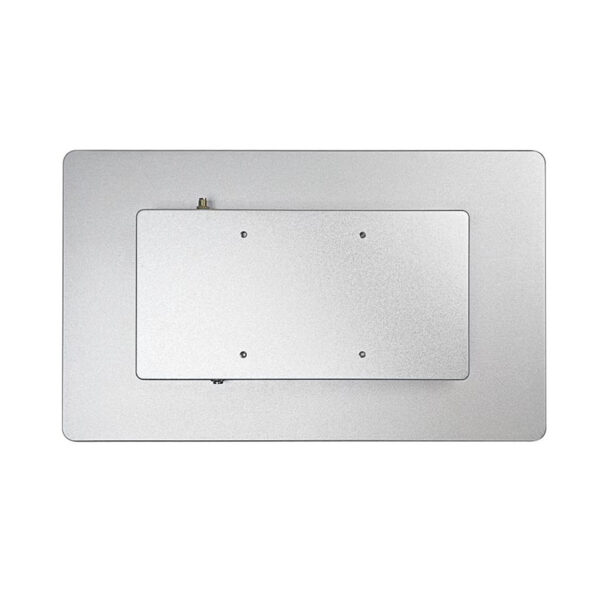

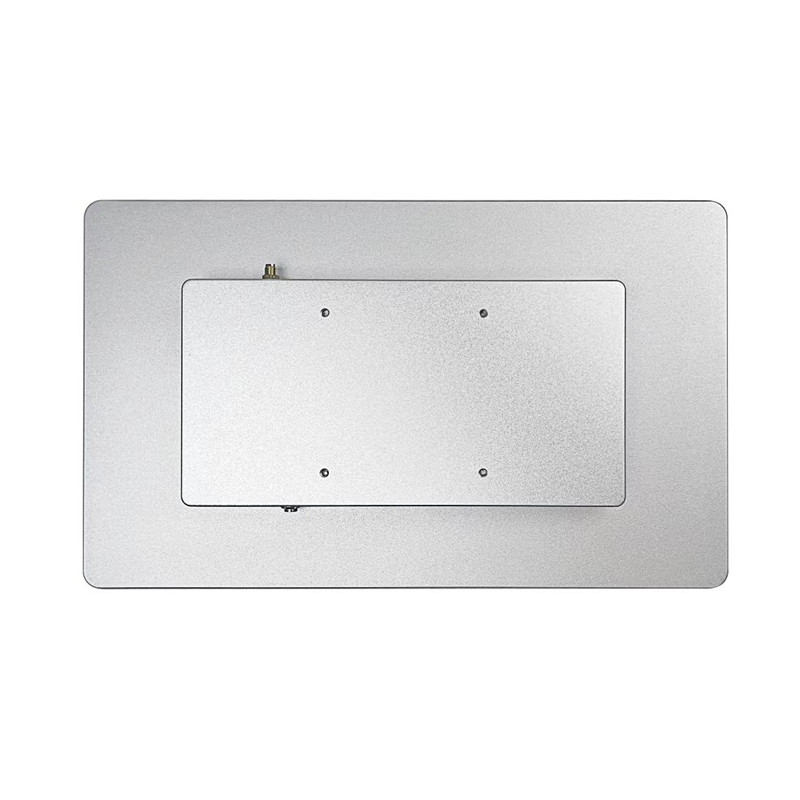

•VESA Mount Compatible – Easy wall mounting or embedded installation.

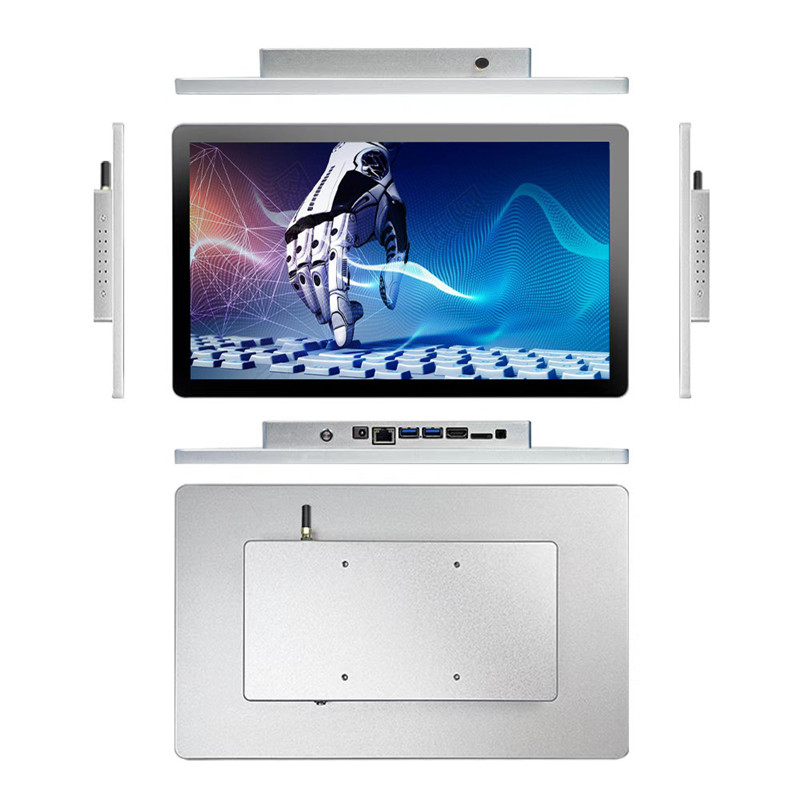

•Multiple I/O Ports – USB, HDMI, RJ45 (with optional POE), TF card, and more.
Technical Specifications
Specification Details
Screen Size 15.6 Inch (10.1/13.3 inch optional)
Display Resolution 1920×1080 Full HD
Touch Type 10-point Capacitive Touch
Screen Structure Full Laminated + Tempered Glass
Brightness 300~400 nits (optional higher brightness)
Material Full Aluminum Alloy
Protection Level IP65 Front Panel
OS Android 11 (customizable to Linux)
Connectivity Wi-Fi, RJ45 (POE optional), Bluetooth
Mounting Options VESA 75×75 / 100×100
Power Supply DC 12V / POE optional
Application Scenarios
Applications:
•✅ Medical Examination Terminals
•✅ Beauty & Aesthetic Equipment Displays
•✅ Clinic Self-service Kiosks
•✅ SPA or Skin Analyzer Display Screens
•✅ Smart Cabinet / Mirror Control Panels
Customization Options
We offer OEM/ODM services:
•Logo printing and boot-up screen customization
•Interface options (RS232, RS485, TTL, GPIO)
•RAM/ROM configuration
•OS customization (Android, Linux, Ubuntu)
•Touch screen or non-touch versions
