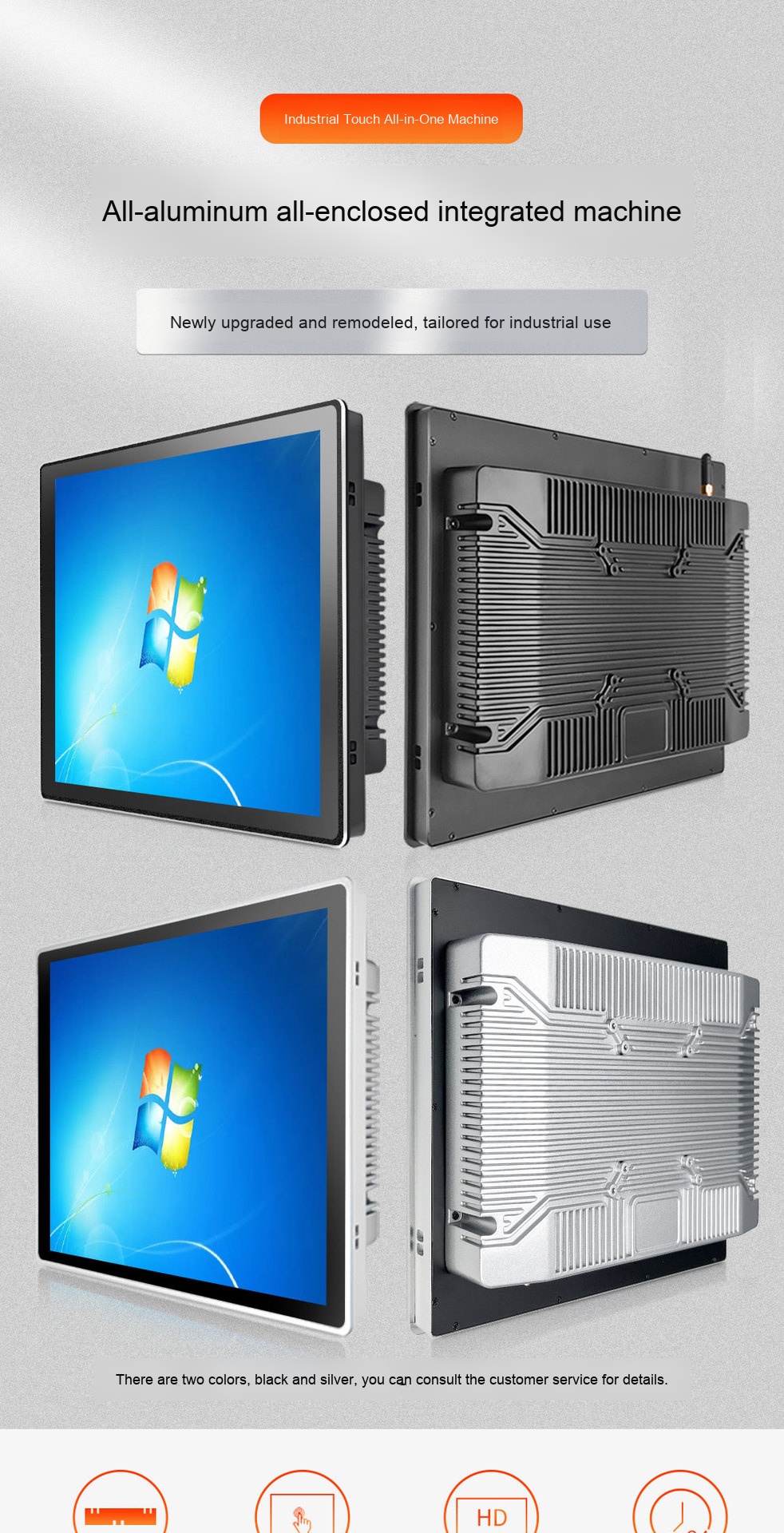

Aluminum Alloy Shell Industrial Touch All In One Panel PC
Additional information
| Size | 10.4/12.1/13.3/15/15.6/17/18.5/19/21.5/23.6" optional |
|---|---|
| Touch Screen Type | Capacitive Screen/Resistance Screen |
| Resolution | 800*600/1024*768/1280*1024/1920*1080 |

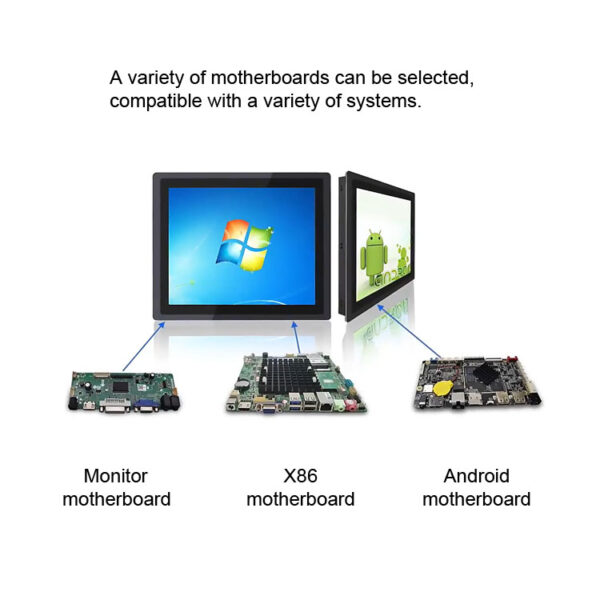

| CPU | Intel N2840/J1800/J4125/J1900/I3/I5/I7/RK3588/RK3399/RK3568/RK3566/RK3288/RK3128/A40/A64 optional |
| RAM/ROM | 8GB/4GB/2GB/1GB RAM, 128GB/64GB/32GB/16GB/8GB ROM |
| Function | 4G LTE/GPS/RFID/RS485/RS232/NFC Optional |
MULTI GOLD

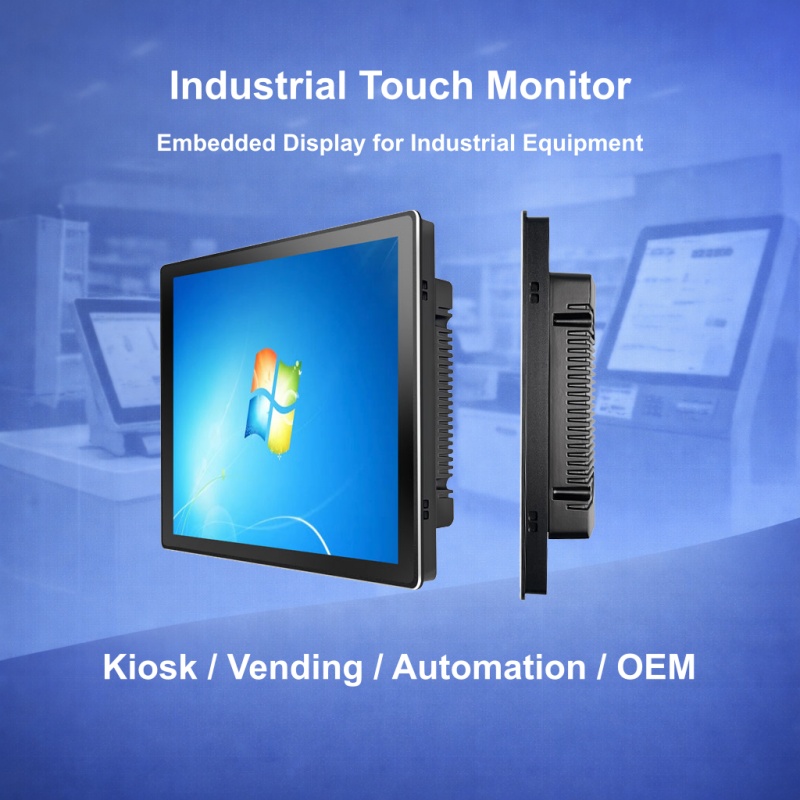

Customization Android / Linux based Industrial Touch Monitors (7” – 55” ) with capacitive touchscreen, IP67 water-proof, 3mm embedded concave edge, the high stability supporting 7 days /24 hours working, the rich interfaces to meet the needs of different external devices. It’s ideal for integration into vending machines, Interactive Kiosks, Self-service terminal, Game Table, laser beauty equipment, automation industrial equipment and so on. It have been widely use in various industry such as healthcare, retail, financial services, restaurant, education, manufacturing.
Product Details:
The 7 ~ 55 inch all-in-one Android Panel PC:
Our Android Panel PC adopts a 10 point capacitive touch screen, which can be used with APPs independently developed by customers and APPs on the Google Play Store. The smart touchscreen display ternimals play a pivotal role in various IoT applications across a spectrum of industries, such as retail, restaurant, healthcare, finance, manufacturing, smart cities, smart homes, and industrial IoT.
|

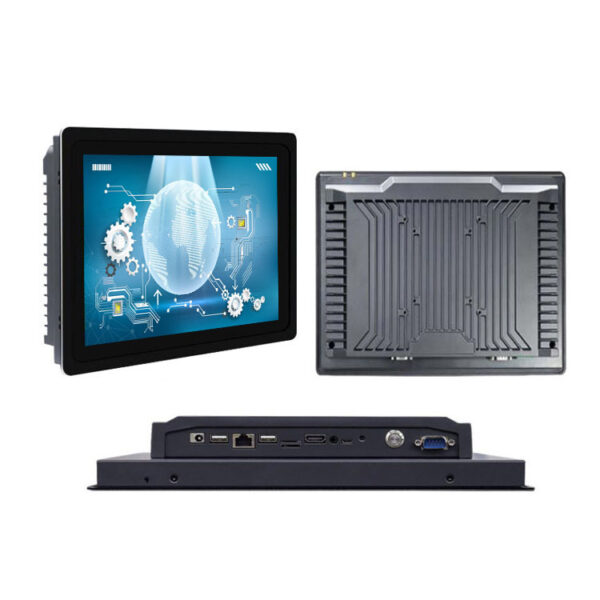

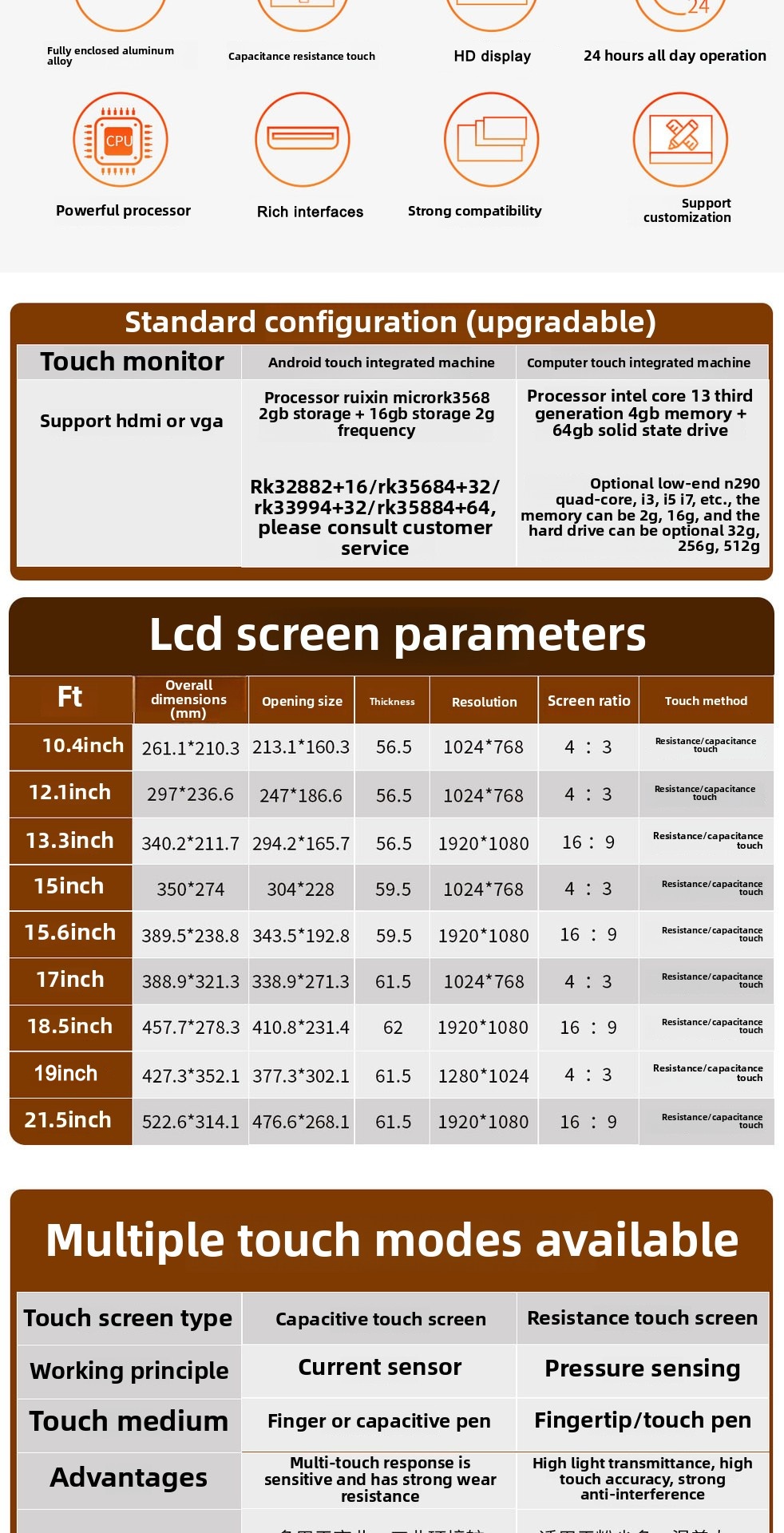

Model
|
MGA104AT
|
|
Dimension
|
282x225x56mm
|
|
Screen
|
10.4 inch (optional 12.1/13.3/15/15.6/17/18.5/19/21.5/23.6 inch)
|
|
Resolution
|
1024*768
|
|
Brightness
|
250 cdm2
|
|
Contrast ratio
|
1000/1
|
|
Screen contrast ratio
|
16:09
|
|
Display area
|
213.1*160.3mm
|
|
CPU
|
Rockchip Intel N2840/J1800/N4125/J1900/I3/I5/I7/RK3588/RK3399/RK3566/RK3568/RK3288/J1800/J1900/I3/I5/I7 1.6Ghz-2.4Ghz
|
|
RMA/ROM
|
1GB/2GB/4GB/8GB RAM, 8GB/16GB/32GB/64GB/128GB ROM Optional
|
|
OS
|

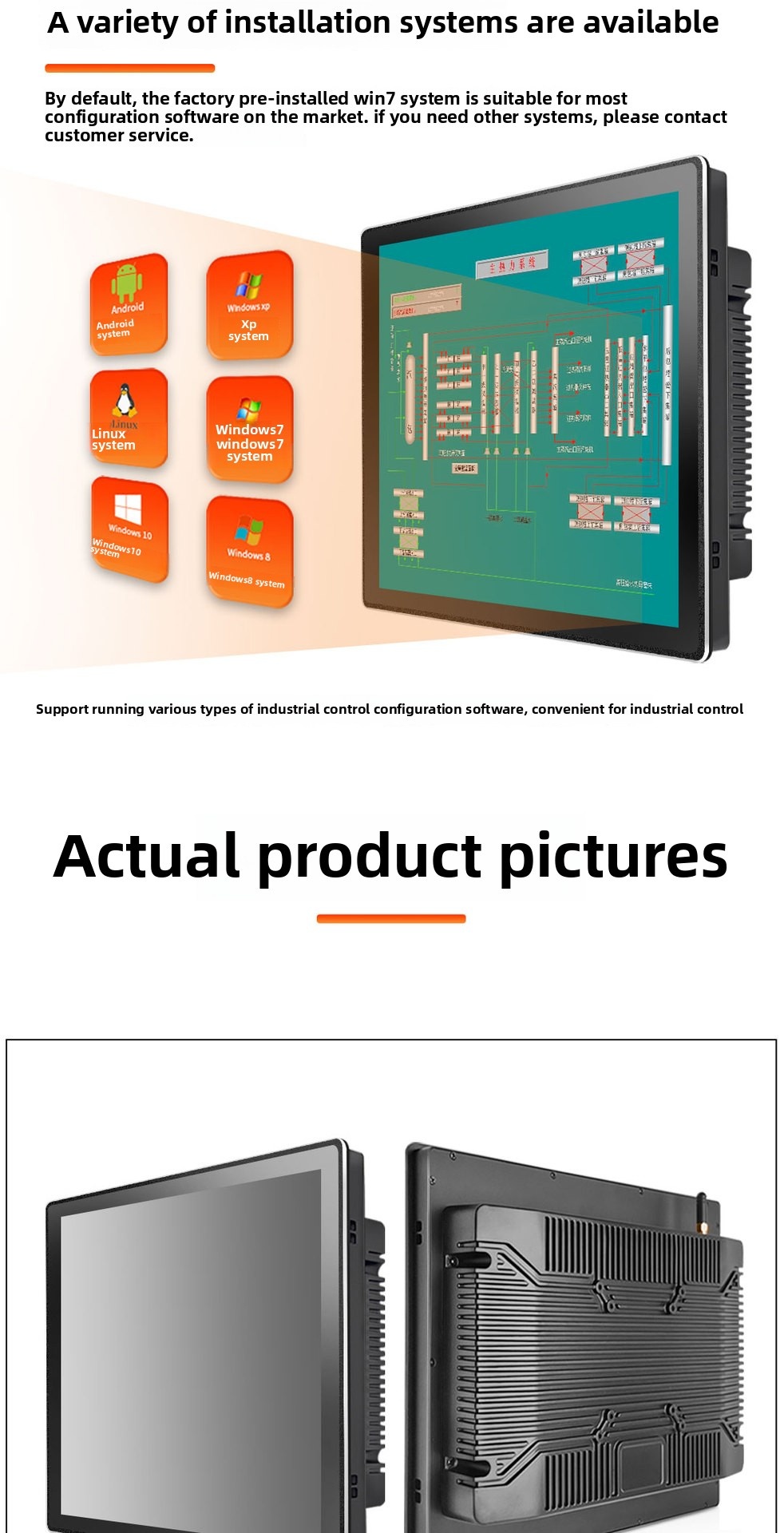

Windows 7/10.0/11.0/Android 13.0/12.0/11.0/9.0/8.1/7.1/6.0/5.1 or Linux Optional
|
|
Camera
|
Optional
|
|
Network
|
WiFi
|
|
Vesa
|
Support
|
|
BT
|
Support
|
|

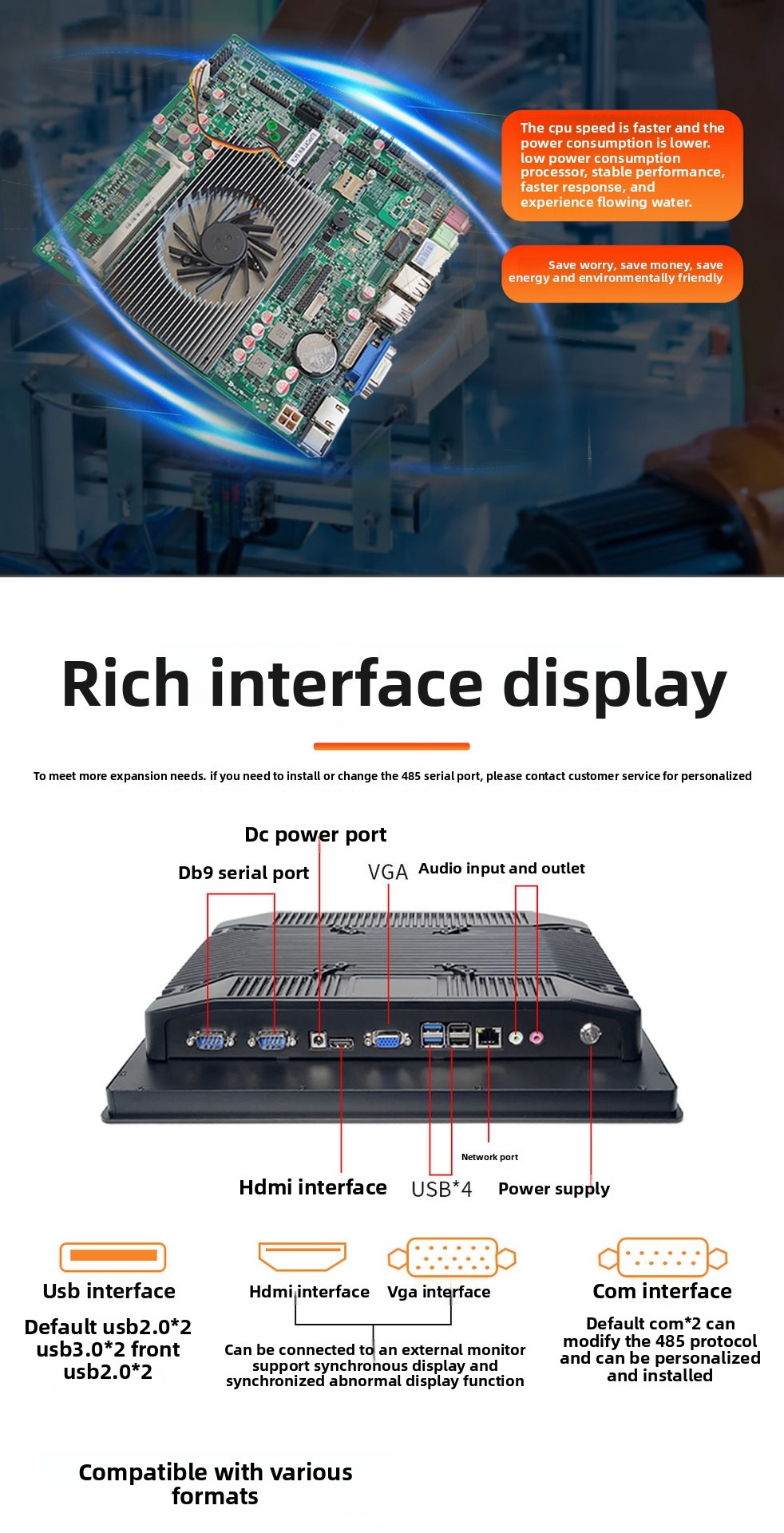

Interace
|
USB 2.0
|
|
SD Card slot
|
|
|
Mimi USB OTG
|
|
|
3.5mm Earphone
|
|
|
5.5mm DC Jack
|
|
|
RJ45
|
|
|
NFC/RFID/4G LTE/GPS/RS232/RS485
|
Optional
|
|
Language
|
Support Multiple languages
|
|
Charger
|
12V/5A
|
|
Multi-media
|
MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV.etc
|
|
MP3,WMA,AAC.etc
|
|
|
JPEG,JPG
|
|
|
Net Weight
|
2KG
|
|
Warrenty and after-sales
|
3 years for accessories, 1 year for screen.
|

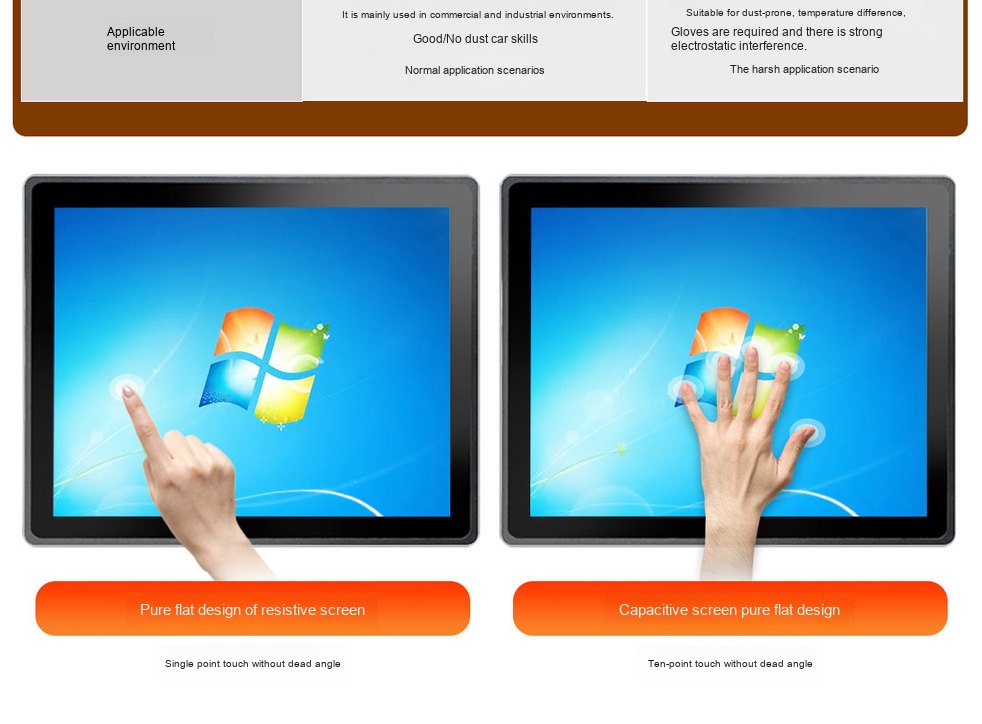

| Touch parameters | |
| Touch type | capacitive touch |
| Surface hardness | >3H |
| Resistor life | Clicks > 35 million |
| Capacitor life | Clicks > 50 million |
| Touch force | <45g-250g |
| Glass type | chemical plexiglass |
| Linearity error | <1.5% |
| Transmittance | 75±5%/85±5% |
| Environmental parameters | |
| Power supply | 12V-5A professional external power adapter |
| Maximum power | Less than 60W |
| Degree of protection | Front panel IP65 dustproof and waterproof |
| Working current | ≤5A |
| Temperature | Working -10℃-60℃/storage 20℃-60℃ |
| Relative humidity | 5-95%（no condensation） |
| Other | |
| Anti-interference | Isolation, filtering, anti-electromagnetic interference |
Serious Quality Control Process
QC testing one by one in-process production line —> 72 hours aging testing —> OQC Inspection before shipment.
Product Certificate
