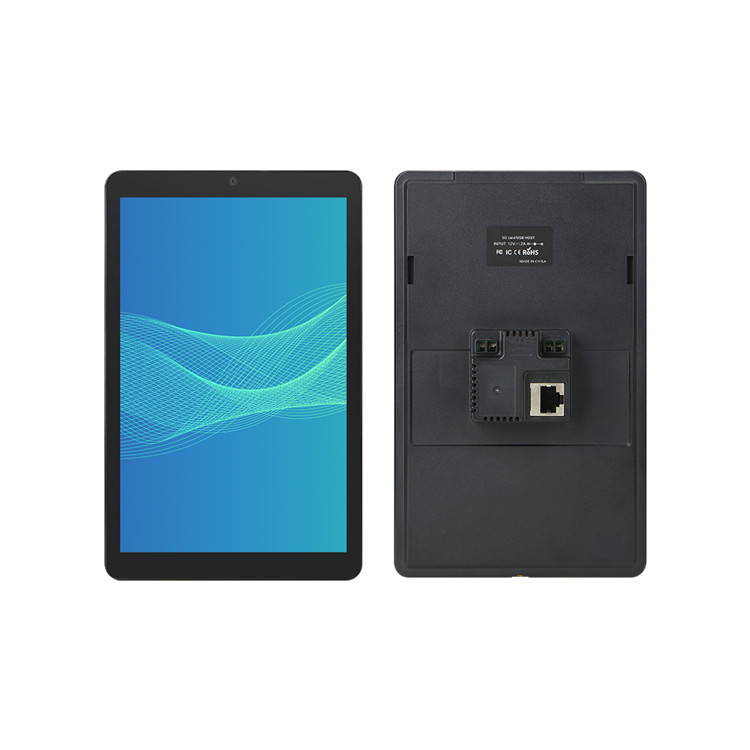

8 10 inch Touch Screen Panel POE Android Tablet PC for smart home
Additional information
| Size | 8 inch 10 inch optional |
|---|---|
| Resolution | 1280*800/1920*1200 Optional |
| CPU | Rockchip rk3566 quad core A55 processor, clocked 1.8G |
| RAM/ROM | 2GB+32GB/4GB+32GB optional |
| Operation System | Android 11.0 |
| Function | Front camera 2.0MP/POE/RS485/LED light strip |
MULTI GOLD
Customization Android / Linux based Monitor (7” – 100” ) with IPS FHD Capacitive touch screen, VESA hole for mounting, the high stability supporting 7 days /24 hours working, the rich interfaces to meet the needs of different external devices. It’s ideal for advertising display, PoS machine, Kitchen display, information checking kiosk, spinning bike fitness and so on. It have been widely use in various industry such as healthcare, fitness, retail, financial services, restaurant, education, manufacturing
Product Details:

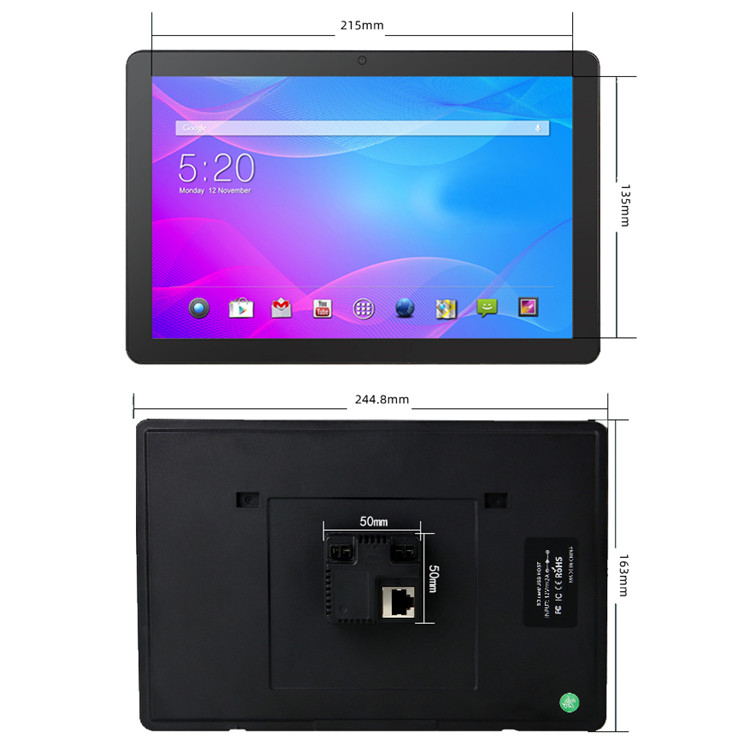

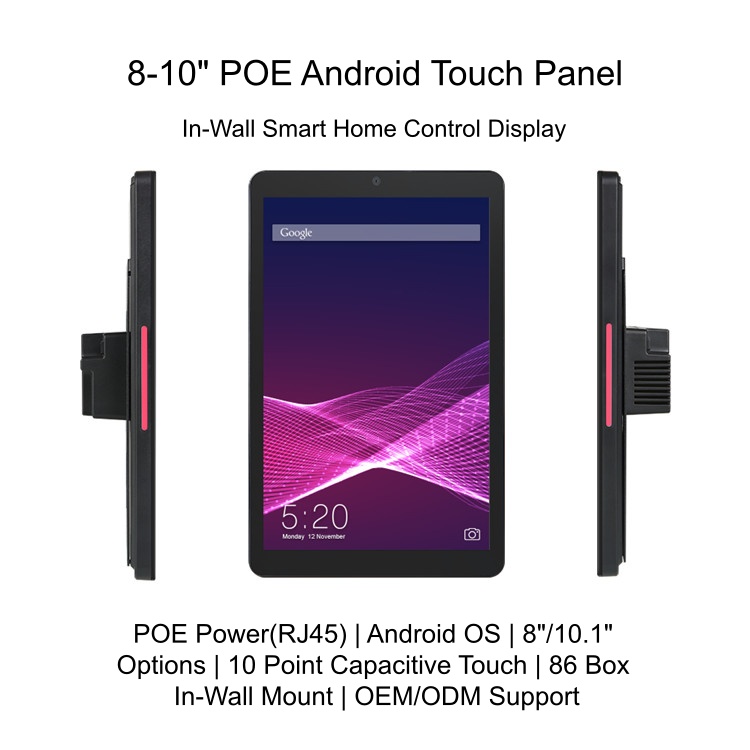

8 10.1″ Android 11 Wall Mount Tablet with LED Lights | POE Touch Screen Panel with RS485, RK3566, Supports EU/86/Circular Wall Box

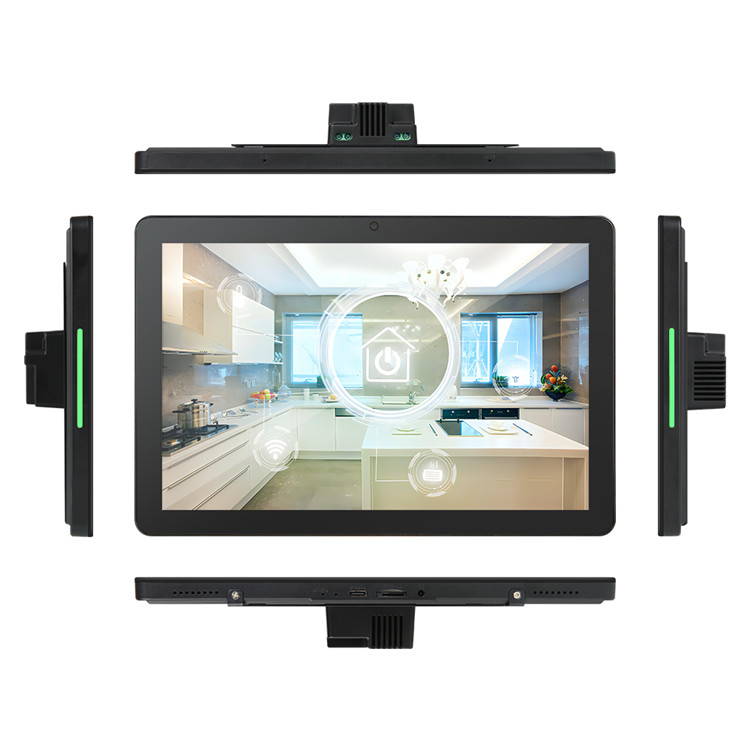

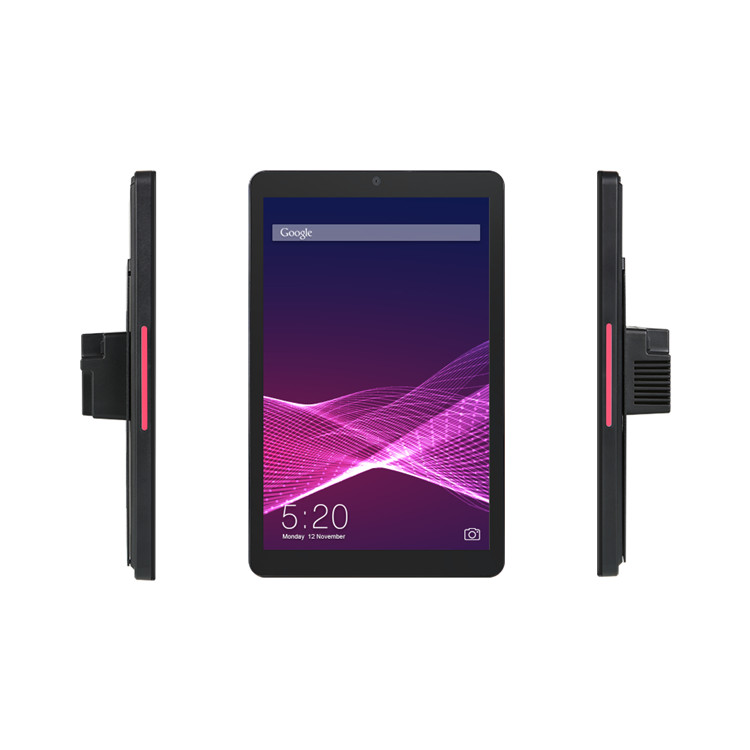

8-inch/ 10.1-Inch Wall-Mount Android Tablet with LED Side Lights
POE Powered | RS485 | Horizontal & Vertical Display | Android 11

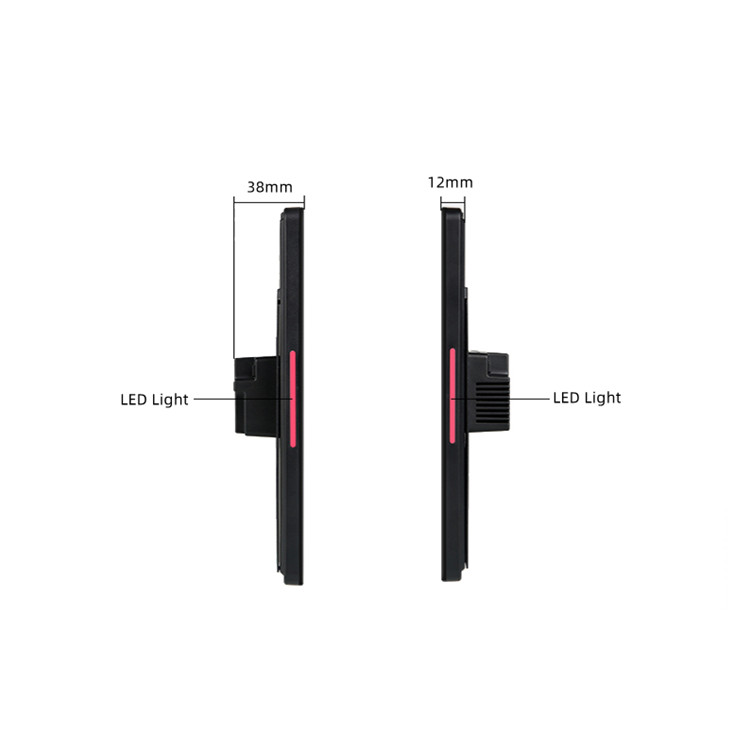

•Vivid Dual-Side LED Design – Enhances visibility and user interaction

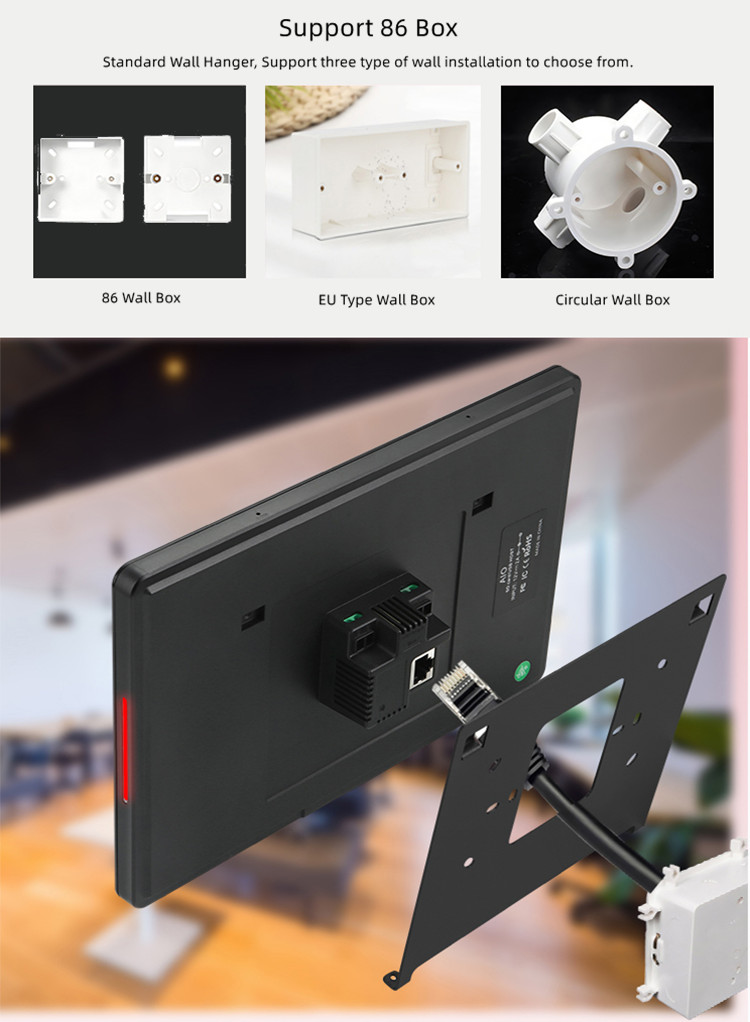

•Supports 86 Wall Box / EU Standard Box / Circular Wall Box – Easy installation anywhere
•Powered by RK3566 Chipset – Ensures smooth Android 11 operation
•POE + RJ45 Connectivity – Simplifies power and network integration
•Capacitive 10-Point Touch – Responsive and accurate user input
•Supports RS485 Communication Protocol – For industrial or automation integration
•Flexible Orientation – Install in landscape or portrait mode
[Application Scenarios Section]
•Smart Home Automation Panels
•Access Control Systems
•Room Booking Displays
•Hotel & Hospital Room Terminals
•Building Intercom Displays
•Industrial HMI Interfaces
Specification Detail

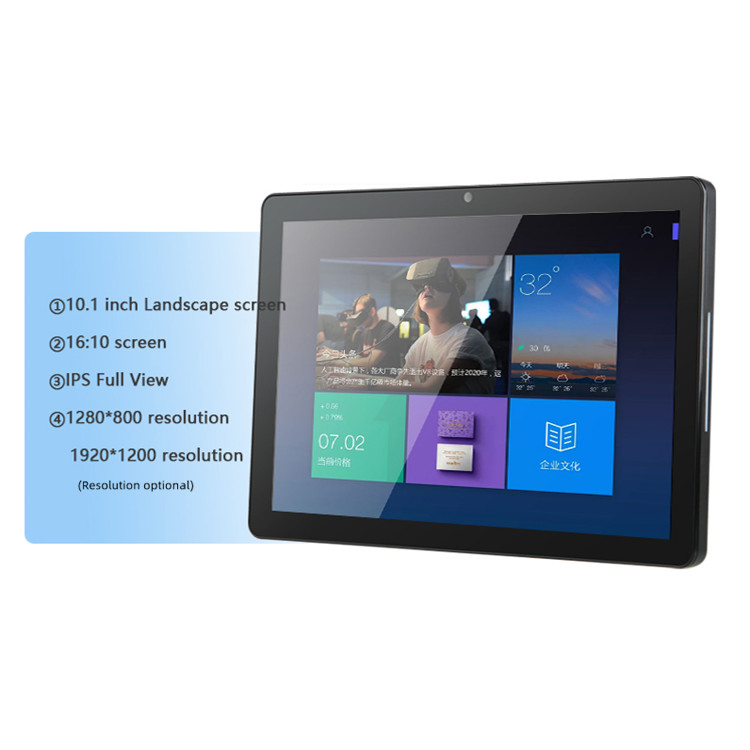

Screen Size 10.1 inch IPS LCD
Touch Type Capacitive Touch (10-point)
Resolution 1280×800 / 1920×1200 (optional)
CPU RK3566 Quad-Core Cortex-A55
OS Android 11
RAM/Storage 2GB/32GB (Optional: 4GB/32GB or higher)
Connectivity RJ45 (POE), Wi-Fi, Bluetooth

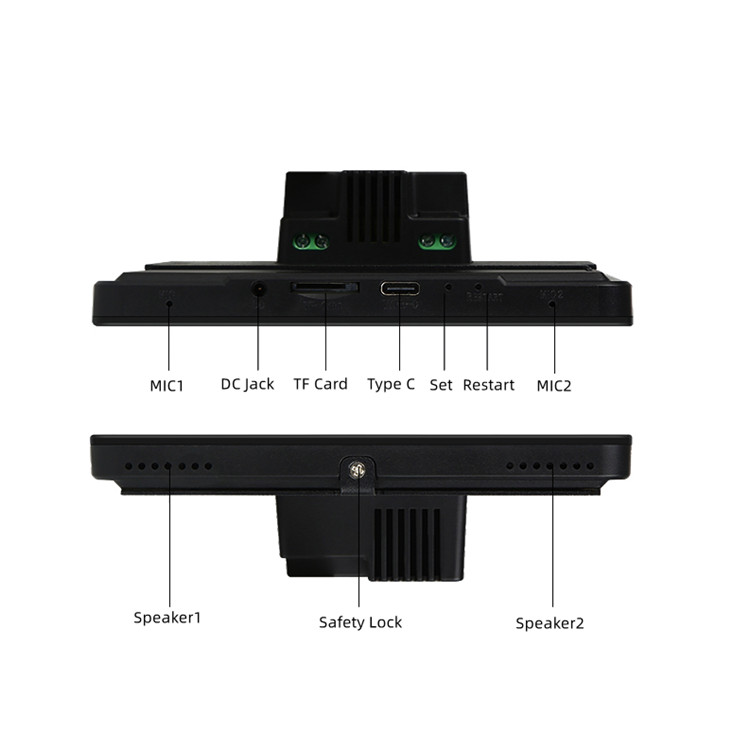

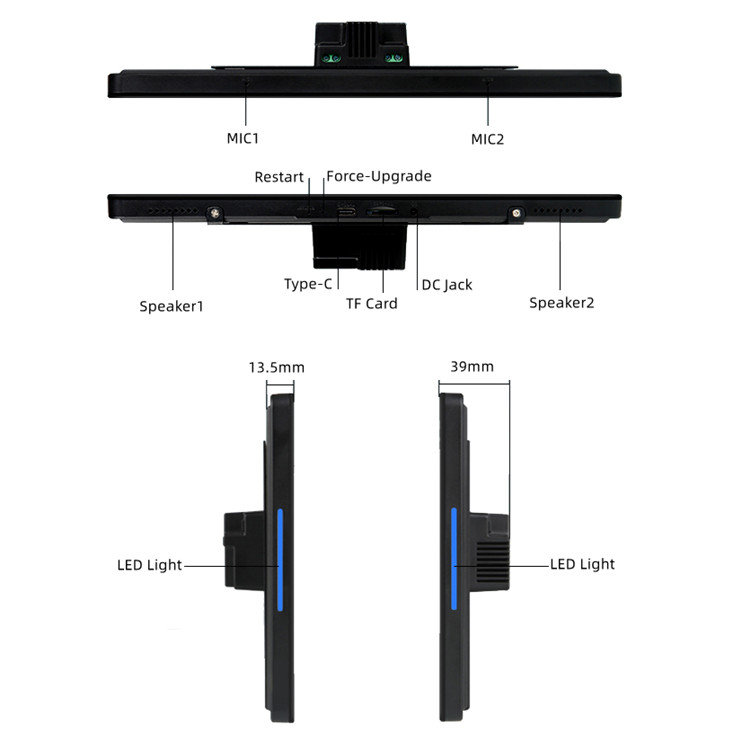

Interface Ports USB 2.0, RS485, TF card, HDMI-out

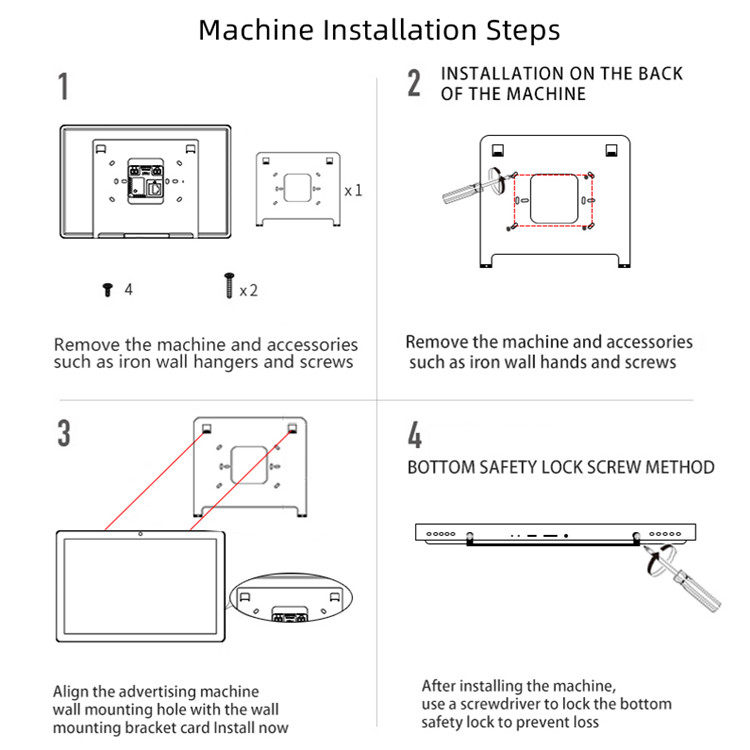

Mounting Options Supports EU box, 86 box, circular box
Orientation Landscape / Portrait
Power Supply POE (802.3af) / DC 12V (optional)

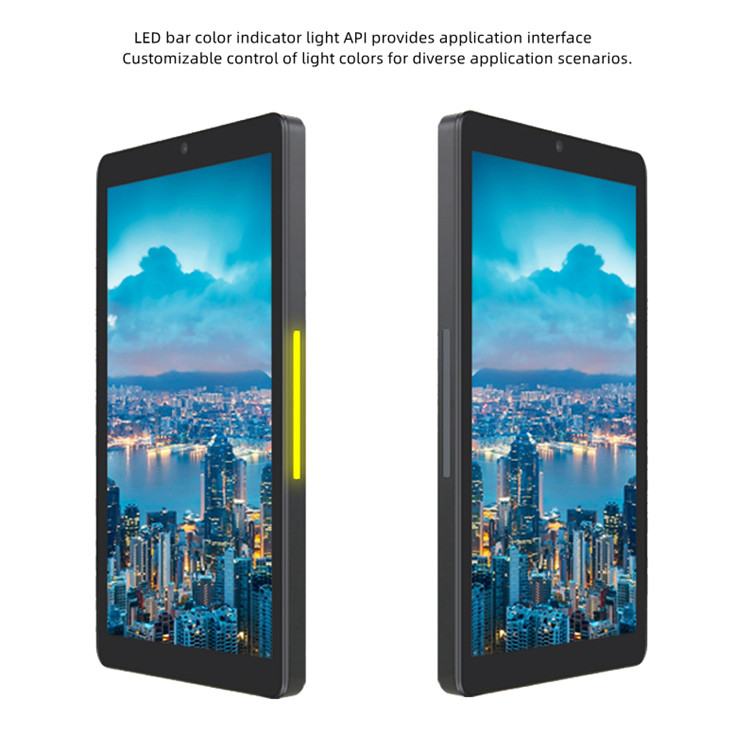

LED Light Dual-side RGB LED (configurable)

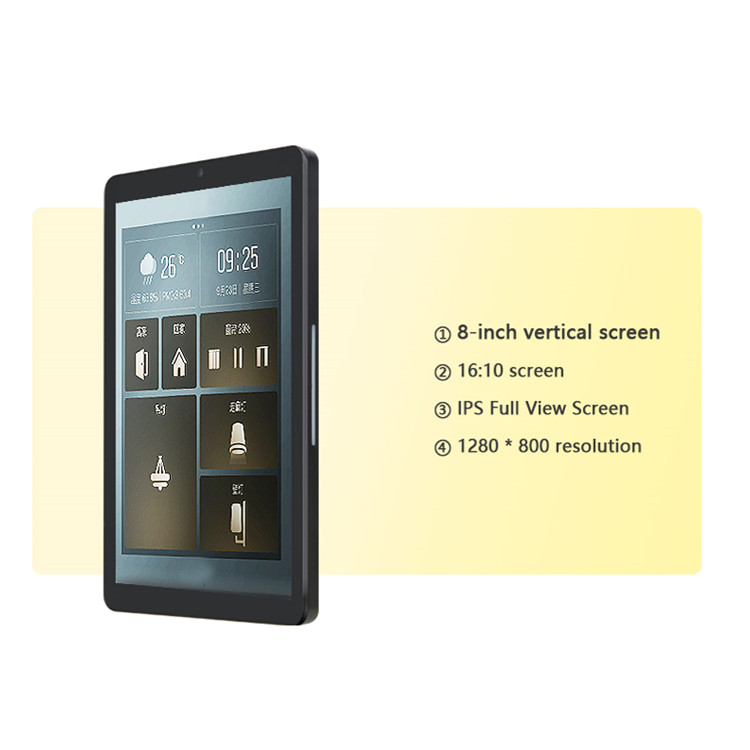

| Panel | 8″ or 10.1″ high-definition full view screen fully bonded |
| Resolution | 1280×800 |
| Display mode | Normally black |
| Viewing angle | 85/85/85/85(L/R/U/D) |
| Luminance | 300 cd/m2 |
| Contrast | 1000:1 |
| Aspect Ratio | 16：10 |
| CPU | Rockchip rk3566 quad core A55 processor, clocked 1.8G |
| RAM | 2GB ( 4GB optional ) |
| Internal memory | 32GB |
| Operation system | Android 11 system |
| Touch screen | 10-Point capacitive touch |
| WIFI and Bluetooth | AP6212 ( 802.11b/g/n and BT5.2 ) 【AP6256 ( 802.11a/b/g/n/ac and BT5.0 ) optional】 |
| Ethernet | 100M ethernet |
| Zigbee Protocol | optional |
| Matter Protocol | optional |
| TF | TF card slots |
| Type-C | USB2.0 supports OTG functionality |

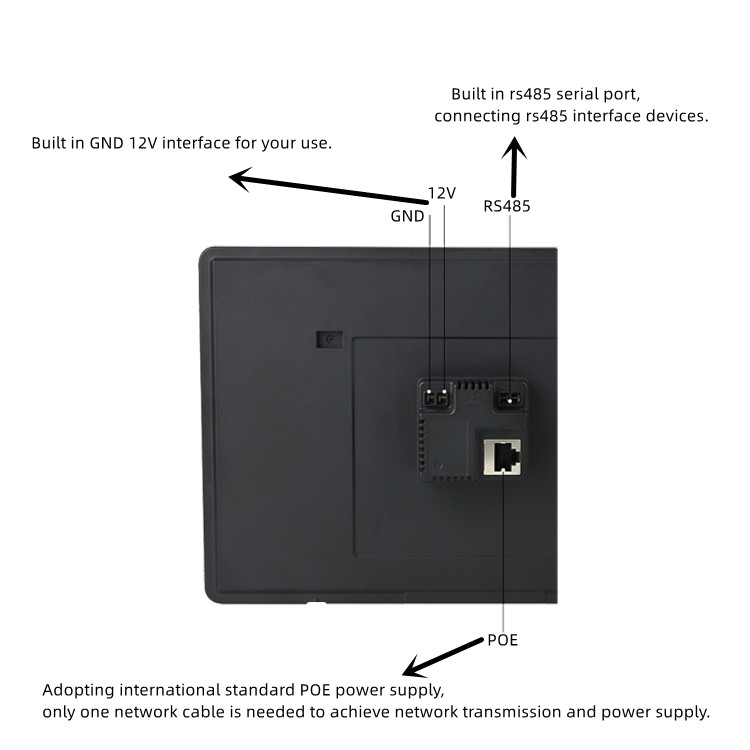

| RJ45 | Ethernet interface ( POE function standard IEEE802.3at,POE+,class 4， 25.5W ) |
| RS-485 | Communicating with RS485 devices |
| Power jack | DC power input |
| Power jack | 12V positive and negative electrode wire interface |
| Video | MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc. |
| Audio | MP3/WMA/AAC etc. |
| Picture | JPEG |
| Microphone | Two microphones |
| Speaker | 2×2W BOX chamber horn |
| LED light strip | RGB |
| Camera | 2MP from a conventional perspective |
| Working temp | 0-50degree |
| OSD language | Multi-language |
| Certificates | 3C，FCC，CE，ROHS etc. |
| Adapter | non |
| User’s Manual | yes |
| Usage | Wall hanging (standard accessory) |
