OEM Desktop 8 10.1 inch Touch Screen Industrial Education Android All In One Tablet
Additional information
| Size | 8/10.1 inch optional |
|---|---|
| Resolution | IPS 1280*800 |
| CPU | RK3588/RK3399/RK3568/RK3368/RK3566/RK3288/RK3188/A64 |
| RAM/ROM | 8GB/4GB/2GB/1GB RAM, 128GB/64GB/32GB/16GB/8GB ROM |
| Operation System | Android 12.0/11.0/9.0/8.1/7.1/6.0/5.1 or Linux |
MULTI GOLD
Customization Android / Linux based Monitor (7” – 55” ) with IPS FHD Capacitive touch screen, VESA hole for mounting, the high stability supporting 7 days /24 hours working, the rich interfaces to meet the needs of different external devices. It’s ideal for advertising display, PoS machine, Kitchen display, information checking kiosk, spinning bike fitness and so on. It have been widely use in various industry such as healthcare, fitness, retail, financial services, restaurant, education, manufacturing.
Product Details:

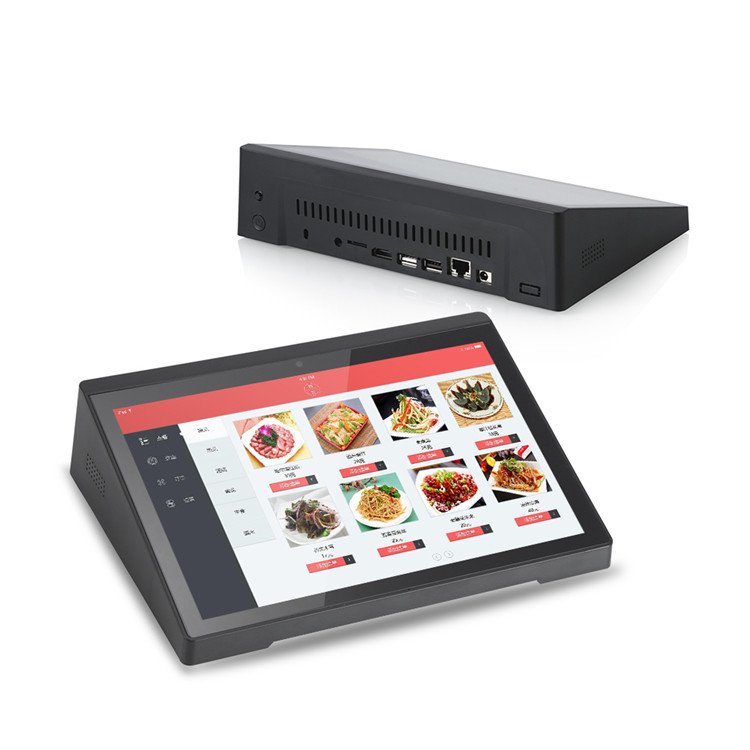

8-inch 10.1-inch Desktop Android touch all-in-one machine, horizontal pager, desktop display, IPS screen, 1280X800 resolution, a variety of CPUs to choose from, such as: RK3588 RK3399 RK3568 RK3566 RK3288 RK3128 Allwinner A64, etc. Multi-point capacitive touch screen, standard without camera, with MIC, with RJ45 network port, with WIFI. Widely used in bank pagers, medical care, smart home, industrial smart terminals, video intercom, elderly care, smart advertising, catering, government affairs, administration, banking and other fields. Ordinary Android applications can be installed, or APK developed by customers can be installed, TTL serial port, RS232 serial port, RS485 serial port, built-in POE power supply, etc. can be customized.
Flexible Configuration Choice:
Flexible CPU Choice: Choose the suitable performance processor configuration to meet your software running needs!
| RK3588 | RK3399 | RK3568 | RK3566 | RK3288 | RK3128 | |
| CPU | Quad core Cortex-A76 + Quad-core Cortex-A55 | Dual-core Cortex-A72 up to 1.8GHz Quad-core Cortex-A53 up to 1.4GHz | Quad-core Cortex-A55 up to 2.0GHz | Quad-Core ARM Cortex-A55 | Quad-core Cortex-A17 up to 1.8GHz | Quad Core Cortex-A7 up to 1.2GHz |
| GPU | Mali-G610 MC4，OpenGL ES 1.1/2.0/3.1/3.2，Vulkan 1.1，1.2，OpenCL 1.1,1.2,2.0 | Mali-T860 GPU，OpenGL ES1.1/2.0/3.0/3.1, OpenCL，Supports AFBC | Mali-G52 GPU，Support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1 | Mali-G52 GPU，Support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1 | Mali-T764 GPU，Support OpenGL ES 1.1/2.0/3.1, OpenCL, DirectX9.3 | Mali-400MP2 GPU, support OpenGL ES1.1/2.0 |
| NPU | 6TOPS NPU ，triple core, support int4/int8/int16/FP16/BF16/TF32 acceleration | / | / | / | / | / |
| Multi-Media | H.265/H.264/AV1/AVS2 etc. multi video decoder, up to 8K@60fps, 8K@30fps video encoders for H.264/H.265 | 4K VP9 and 4K 10bits H265/H264 video decoders, up to 60fps，1080P video encoders for H.264 and VP8 | 4K 60fps H.265/H.264/VP9 decoder，1080P 60fps H.265/H.264 encoder | 4K 60fps H.265/H.264/VP9 decoder，1080P 60fps H.265/H.264 encoder | 4K 10bits H265/H264 video decoders，1080P video encoder for H.264 and VP8 | 1080P video encoding for H.264,VP8 |
| RAM | 4GB/8GB/16GB | 4GB | 2GB/4GB/8GB | 2GB/4GB | 2GB/4GB | 1GB/2GB |
| ROM | 32GB/64GB/128GB | 16GB/32GB/64GB | 16GB/32GB/64GB/128GB | 16GB/32GB | 16GB/32GB | 8GB/16GB |
| System | Android 12 / Linux | Android 9 / Android 11 | Android 11 / Linux | Android 11 / Linux | Android 8.1 / Linux | Android 6.0 |
Serious Quality Control Process
QC testing one by one in-process production line —> 72 hours aging testing —> OQC Inspection before shipment.

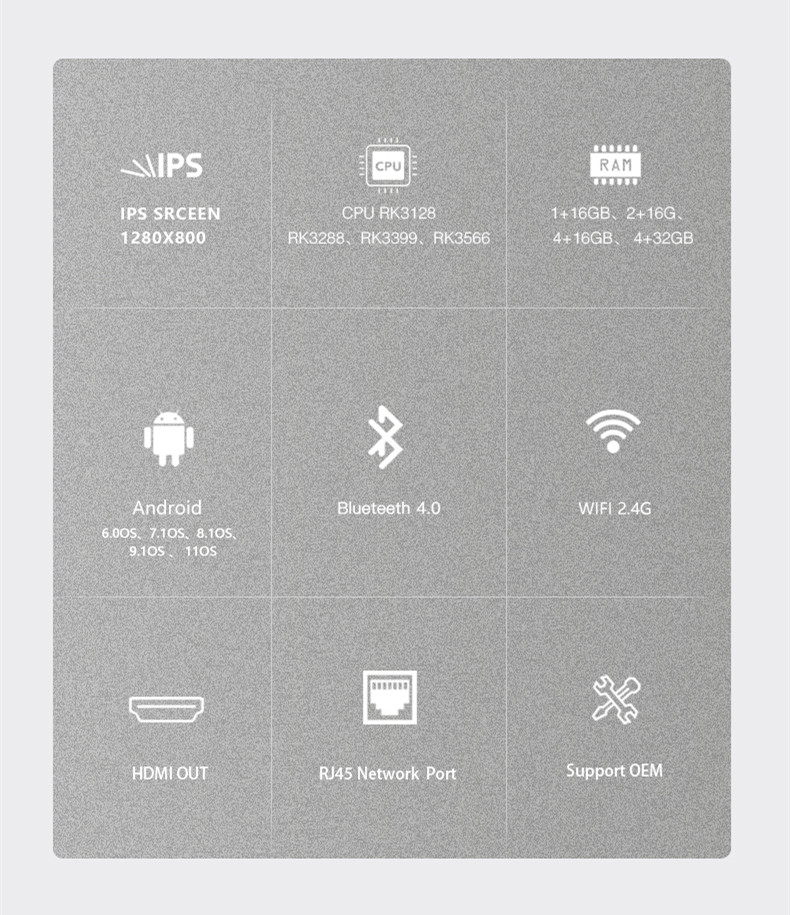

| Model: MGWT100 |
| Material: Plastic |
| Dimension: 242*169*59.2mm |
| Screen: 10 inch IPS Screen (optional 8inch) |
| Resolution: 1280*800 |
| Brightness: 300 cdm2 |
| Contrast ratio: 1000/1 |
| Screen contrast ratio: 16:10 |
| Display area: 216*135mm |
| CPU: Rockchip RK3588/RK3399/RK3568/RK3566/RK3288/RK3368/RK3128/A64 1.6Ghz-2.4Ghz |
| RMA/ROM: 8GB/4GB/2GB/1GB RAM, 128GB/64GB/32GB/16GB/8GB ROM |
| Operating system: Android 12.0/9.0/8.1/7.1/6.0 or Linux Optional |
| Camera: Front 2.0/5.0 Megapixel Optional |
| Network: WiFi (2.4G 5G 6G Optional) |
| Vesa: Support |
| BT: Support |

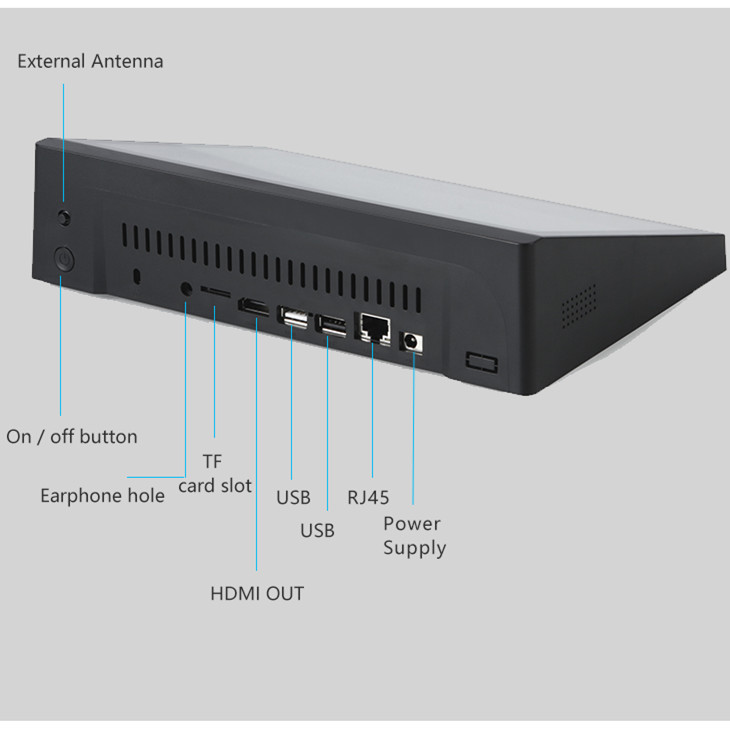

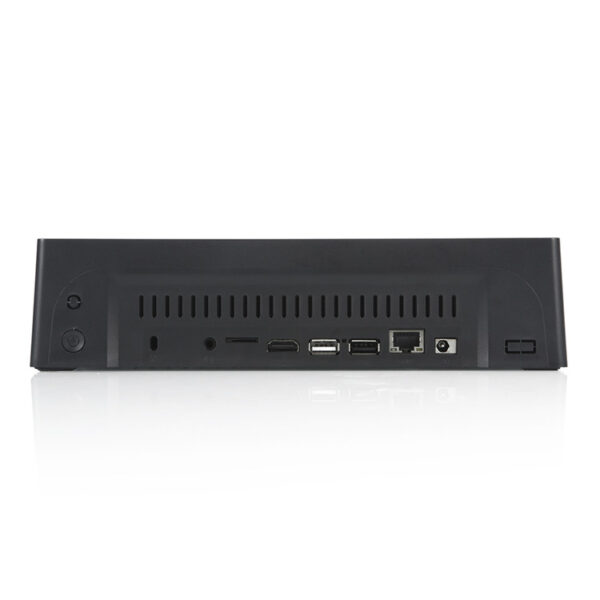

| Interace: USB2.0, SD Card Slot, RJ45 Ethernet Port, 3.5mm Earphone, 4.0mm DC Jack |
| HD-MI Out: Optional |
| Language: Support Multiple languages |
| Charger: 12V/3A |
| Multi-media: MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV.etc, MP3,WMA,AAC.etc, JPEG,JPG |
| Net Weight: 0.64KG |
| Warrenty and after-sales: 3 years for accessories, 1 year for screen. |
| FAQ |
| A: What kind of software is compatible with your touch screen display? |
| Our touch screen displays are compatible with a wide range of software programs, including point of sale systems, self-service kiosks, and retail self-checkout systems. As long as your software is designed for Android operating systems, it should work seamlessly with our devices. |
| B: What kind of customization options do you offer for your touch screen displays? |
| We offer a wide range of customization options for our touch screen displays, including hardware configuration, boot-up screen Logo, Logo printing, and system application etc. Our team of experts will work with you to create a solution that perfectly meets your specific needs. |
| C: Do you offer technical support for your touch screen displays? |
| Yes, we offer comprehensive technical support for all of our touch screen displays. Our team of experts is available to help you troubleshoot any issues you may encounter and ensure that your device is functioning at its best. |
| D: What is your minimum order quantity for touch screen displays? |
| We have a flexible minimum order quantity policy that varies based on the specific product and customization options you require. Please contact us directly for more information. |
| E: How long is your warranty period for touch screen displays? |
| We offer a standard 1-year warranty period for all of our touch screen displays. In addition, we also offer extended warranty options for customers who require additional coverage. |
| F: Do you offer any training or educational resources for your touch screen displays? |
| Yes, we offer training and educational resources to help you get the most out of your touch screen display. Our team can provide training sessions, user manuals, and online resources to ensure that you have all the information you need to use your device effectively. |
