OEM ODM RK3588 8GB 64GB 128GB RS232 RS485 Linux Android 12.0 Industrial Computer Mini PC
Additional information
| CPU | Rockchip RK3588 Octa Core (Quad core Cortex-A76 + Quad-core Cortex-A55） |
|---|---|
| RAM/ROM | 2GB/4GB/8GB RAM, 64GB/128GB/256GB ROM Optional |
| Operation System | Android 12/Linux Optional |
| Function | RS232/RS485/HDMI/4G LTE/WiFi 6 Optional |
MULTI GOLD
The embedded box industrial PCs Android / Linux based high-stability and 24/7 operation, which are engineered to be rugged and perform in the most demanding environments. It can be used for measuring, open and closed loop control applications; checking of process and machine data; necessary in building automation, process automation, industrial manufacturing, and other relevant IPC areas.
Product Details:

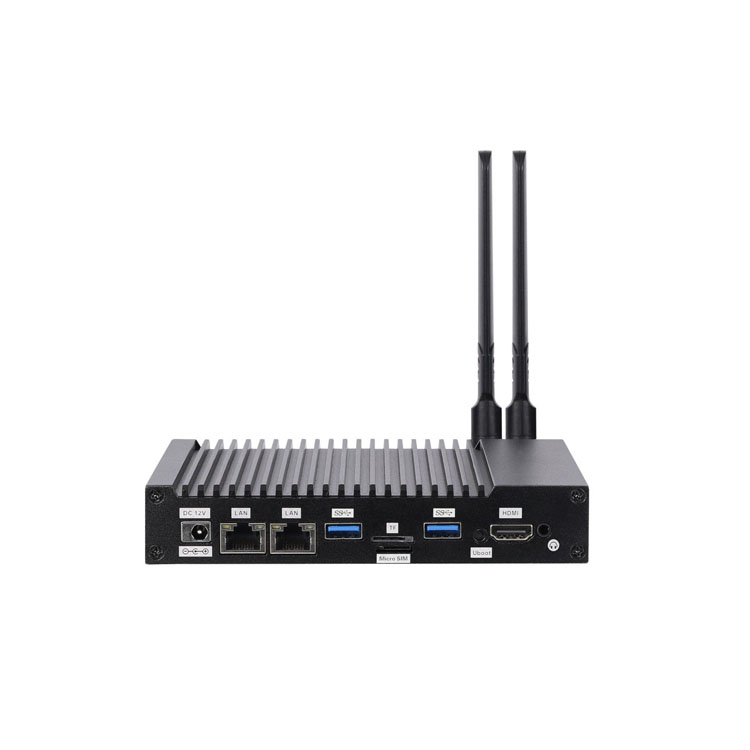

Embedded industrial Box PC:
The industrial Computer adopts Rockchip RK3588 with octa-core 64-bit processor (Quad core Cortex-A76 + Quad-core Cortex-A55), main frequency up to 2.4GHz, built-in 6Tops NPU, maximum memory support 32GB, HDMI output supports 8K , dual 1000M Ethernet ports, dual-band WiFi6, Bluetooth 5.0, 4G network expansion, can be widely used in AI robots, edge computing, security monitoring, video conferencing, IoT gateways and other industrial scenarios.
Flexible OS Choice
Android 12.0 with Google Play Serive, Linux Debian/Ubuntu optional.
| Model: MGIC588 |
| Dimension:157*125*28mm |
| CPU: 8nm process, quad-core Cortex-A76 + quad-core Cortex-A55 |
| GPU: ARM Mali-G610 MC4 |
| NPU: 6.0 TOPs NPU |
| DDR: 2GB/4GB/8GB/16GB/32GB LPDDR4 Optional |
| Flash: 16GB/32GB/64GB/128GB/256GB Optional |
| HD-MI Output: 1*HD-MI 2.1 Output, support max to 8K@60fps |
| Earphone: 1*American standard 4-segment headset integrated 3.5mm socket |
| USB Host: 5*USB2.0，1*USB3.0 |
| USB OTG: 1*USB OTG |
| Serial port: 2*RS232（Optional RS485） |
| Ethernet Port: 2* 10/100/1000M |
| WiFi: 2.4G (Optional 2.4G/5G/6G) |
| WiFi,BT: WiFi6，BT5.0 |
| 4G antenna: 1pcs（Optional） |
| WiFi antenna: 1pcs |
| TF Card: Max 128GB |
| Lighted switch: Reboot |
| Burn key: Firmware upgrade |
| 4G communication: Built-in PCI-E 4G interface |
| SIM seat: Micro-SIM card holder |
| RTC real time clock: Support |
| Timer switch: Support |
| System Upgrade: Support local USB upgrade |
| Operating temperature: 0℃~70℃ |
| Power supply: 9V~15V wide voltage DC |
