OEM 13.3 14 15.6 inch Touch Screen RK3588 RK3399 RK3568 RK3288 RK3566 WiFi RJ45 PoE VESA Mount Android Linux Smart All In One Tablet PC

Additional information


10.1/12.1/13.3/14/15.6/17.3/18.5/21.5" Optional






8GB/4GB/2GB/1GB RAM, 128GB/64GB/32GB/16GB/8GB ROM

Operation System

Android 12.0/11.0/9.0/8.1/7.1/6.0/5.1 or Linux




Customization Android / Linux based Monitor (7” – 55” ) with IPS FHD Capacitive touch screen, VESA hole for mounting, the high stability supporting 7 days /24 hours working, the rich interfaces to meet the needs of different external devices. It’s ideal for advertising display, PoS machine, Kitchen display, information checking kiosk, spinning bike fitness and so on. It have been widely use in various industry such as healthcare, fitness, retail, financial services, restaurant, education, manufacturing.

Product Details:

The 7 ~ 55 inch all-in-one Android Panel PC:

The Android Display adopts a 10-point capacitive touch screen, which can be used with APPs independently developed by customers and APPs on the Googlr Play Store. If customers need to use it as a remote-controlled advertising machine, they can realize the remote control function (extra charge) by purchasing a paid software, and the capacitive touch function is optional. We could customize hardware configuration and system according to customer’s requirements. MULTI GOLD Android touch all-in-one PC is widely used in banks, shopping malls, enterprises, hospitals, hotels, campuses, airports, cinemas, media companies, etc.

Flexible Configuration Choice:

Flexible CPU Choice: Choose the suitable performance processor configuration to meet your software running needs!
RK3588 RK3399 RK3568 RK3566 RK3288 RK3128
CPU Quad core Cortex-A76 + Quad-core Cortex-A55 Dual-core Cortex-A72 up to 1.8GHz
Quad-core Cortex-A53 up to 1.4GHz
Quad-core Cortex-A55 up to 2.0GHz Quad-Core ARM Cortex-A55 Quad-core Cortex-A17 up to 1.8GHz Quad Core Cortex-A7 up to 1.2GHz
GPU Mali-G610 MC4,OpenGL ES 1.1/2.0/3.1/3.2,Vulkan 1.1,1.2,OpenCL 1.1,1.2,2.0 Mali-T860 GPU,OpenGL ES1.1/2.0/3.0/3.1, OpenCL,Supports AFBC Mali-G52 GPU,Support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 Mali-G52 GPU,Support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 Mali-T764 GPU,Support OpenGL ES 1.1/2.0/3.1, OpenCL, DirectX9.3 Mali-400MP2 GPU, support OpenGL ES1.1/2.0
NPU 6TOPS NPU ,triple core, support int4/int8/int16/FP16/BF16/TF32 acceleration / / / / /
Multi-Media H.265/H.264/AV1/AVS2 etc. multi video decoder, up to 8K@60fps, 8K@30fps video encoders for H.264/H.265 4K VP9 and 4K 10bits H265/H264 video decoders, up to 60fps,1080P video encoders for H.264 and VP8 4K 60fps H.265/H.264/VP9 decoder,1080P 60fps H.265/H.264 encoder 4K 60fps H.265/H.264/VP9 decoder,1080P 60fps H.265/H.264 encoder 4K 10bits H265/H264 video decoders,1080P video encoder for H.264 and VP8 1080P video encoding for H.264,VP8
ROM 32GB/64GB/128GB 16GB/32GB/64GB 16GB/32GB/64GB/128GB 16GB/32GB 16GB/32GB 8GB/16GB
System Android 12 / Linux Android 9 / Android 11 Android 11 / Linux Android 11 / Linux Android 8.1 / Linux Android 6.0

Serious Quality Control Process

QC testing one by one in-process production line —> 72 hours aging testing —> OQC Inspection before shipment.

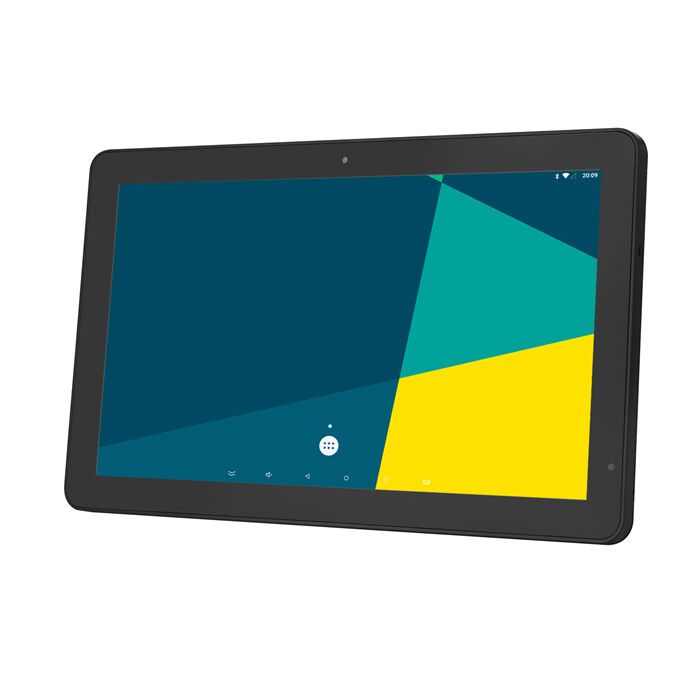

Model: MGA156
Material: Plastic
Dimension: 391*240*30mm
Screen: 15.6 inch IPS Screen
Resolution: 1920*1080
Brightness: 350 cdm2
Contrast ratio: 1000/1
Screen contrast ratio: 16:09
Display area: 349*192mm
CPU: Rockchip RK3588/RK3399/RK3568/RK3566/RK3288/RK3368/RK3188  1.8Ghz-2.4Ghz
Operating system: Android 12.0/9.0/8.1/7.1/6.0 or Linux Optional
Camera: Front 2.0/5.0 Megapixel Optional
Network: WiFi (2.4G 5G 6G Optional)

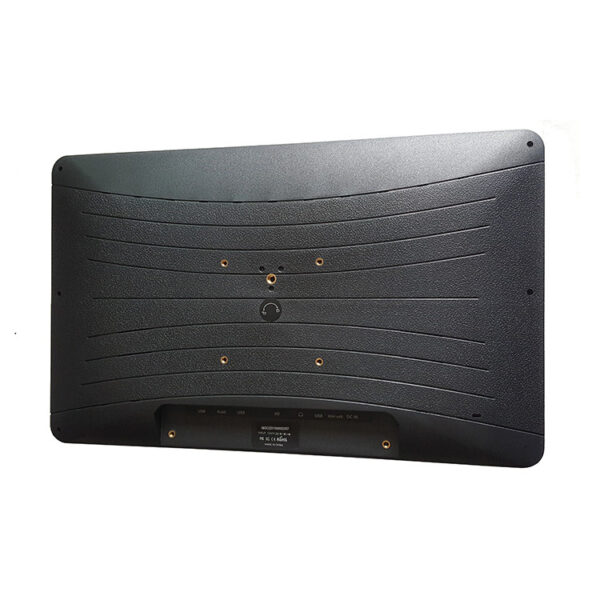

Vesa: Support
BT: Support
Interace: USB2.0, SD Card Slot, RJ45 Ethernet Port, 3.5mm Earphone, 4.0mm DC Jack
HD-MI Out: Optional
Language: Support Multiple languages
Charger: 12V/3A
Multi-media: MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV.etc, MP3,WMA,AAC.etc,  JPEG,JPG
Net Weight: 1.5KG


A: What kind of software is compatible with your touch screen display?
Our touch screen displays are compatible with a wide range of software programs, including point of sale systems, self-service kiosks, and retail self-checkout systems. As long as your software is designed for Android operating systems, it should work seamlessly with our devices.
B: What kind of customization options do you offer for your touch screen displays?
We offer a wide range of customization options for our touch screen displays, including hardware configuration, boot-up screen Logo, Logo printing, and system application etc. Our team of experts will work with you to create a solution that perfectly meets your specific needs.
C: Do you offer technical support for your touch screen displays?
Yes, we offer comprehensive technical support for all of our touch screen displays. Our team of experts is available to help you troubleshoot any issues you may encounter and ensure that your device is functioning at its best.
D: What is your minimum order quantity for touch screen displays?
We have a flexible minimum order quantity policy that varies based on the specific product and customization options you require. Please contact us directly for more information.
E: How long is your warranty period for touch screen displays?
We offer a standard 1-year warranty period for all of our touch screen displays. In addition, we also offer extended warranty options for customers who require additional coverage.
F: Do you offer any training or educational resources for your touch screen displays?
Yes, we offer training and educational resources to help you get the most out of your touch screen display. Our team can provide training sessions, user manuals, and online resources to ensure that you have all the information you need to use your device effectively.
