The Industrial and Commercial grade Android / Linux based touchscreen monitors have been widely use in Internet of Things interactive devices in various industries. This article is going to introduce the most popular installation methods of display in detail.

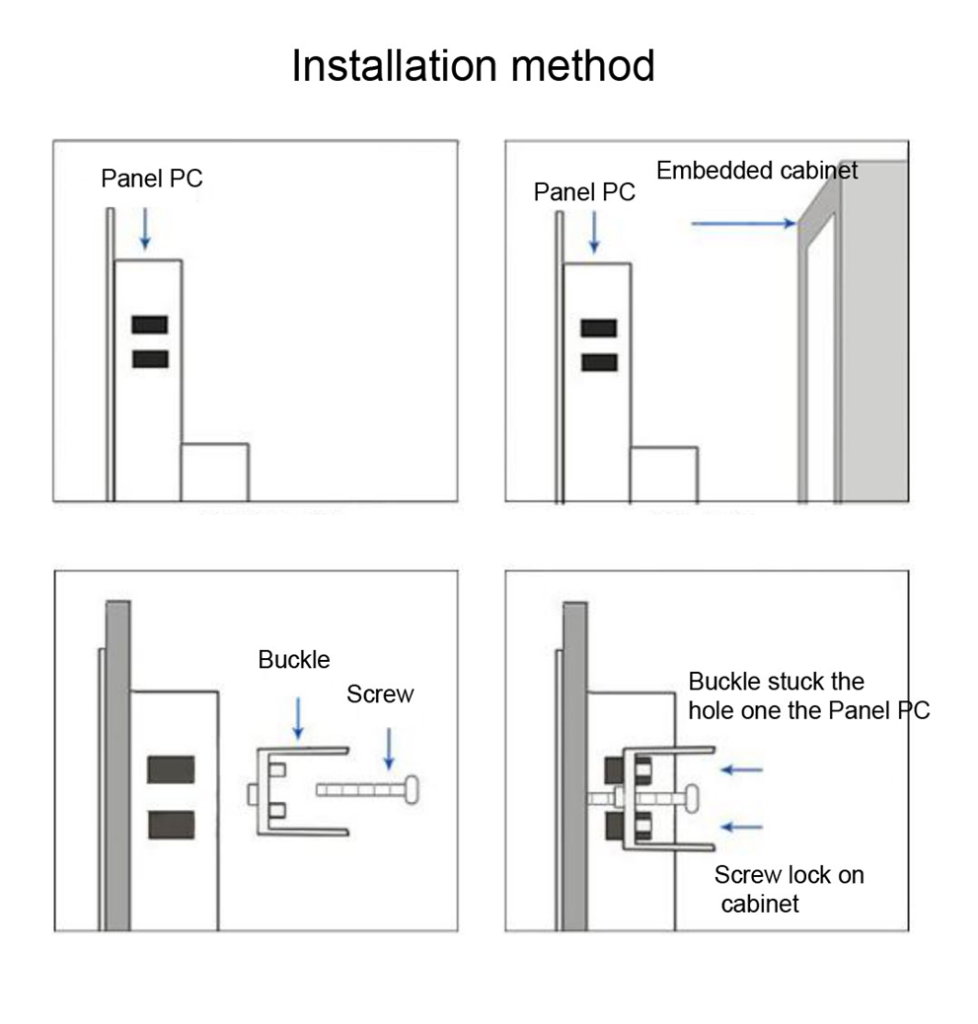

1, Embedded installation: Multi Gold industrial touch monitor / Panel PC series ( 10.4” 12.1” 13.3” 15” 17” 19” 21.5” ) could be embedded in the customer’s products such as cabinets, dashboards or other surface of equipment. Customer have to open hole according to the opening size of the embedded installation diagram of the monitor. Except for the front monitor panel, the rest part of the monitor is embedded in the cabinet, and the back is fixed with a hook.

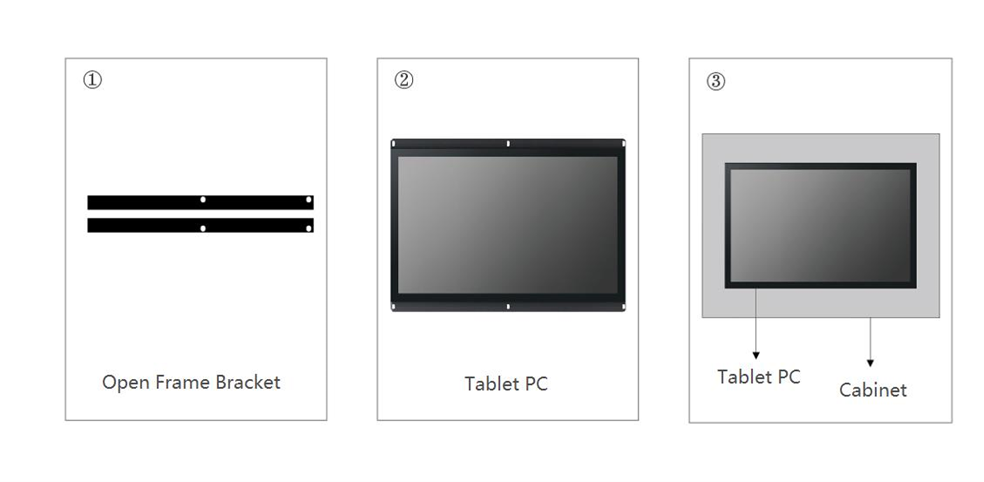

2, Open Frame bracket installation: Multi Gold industrial touch screen monitor / Panel PC flat screen series ranging 10.1” to 55”, it is true flat screen design with 3mm embedded groove in front panel and could be embedded in the customer’s product, such as display cabinet, touch screen toaster, board game touch screen table and so on. Customer have to open hole according to the display area of the monitor.

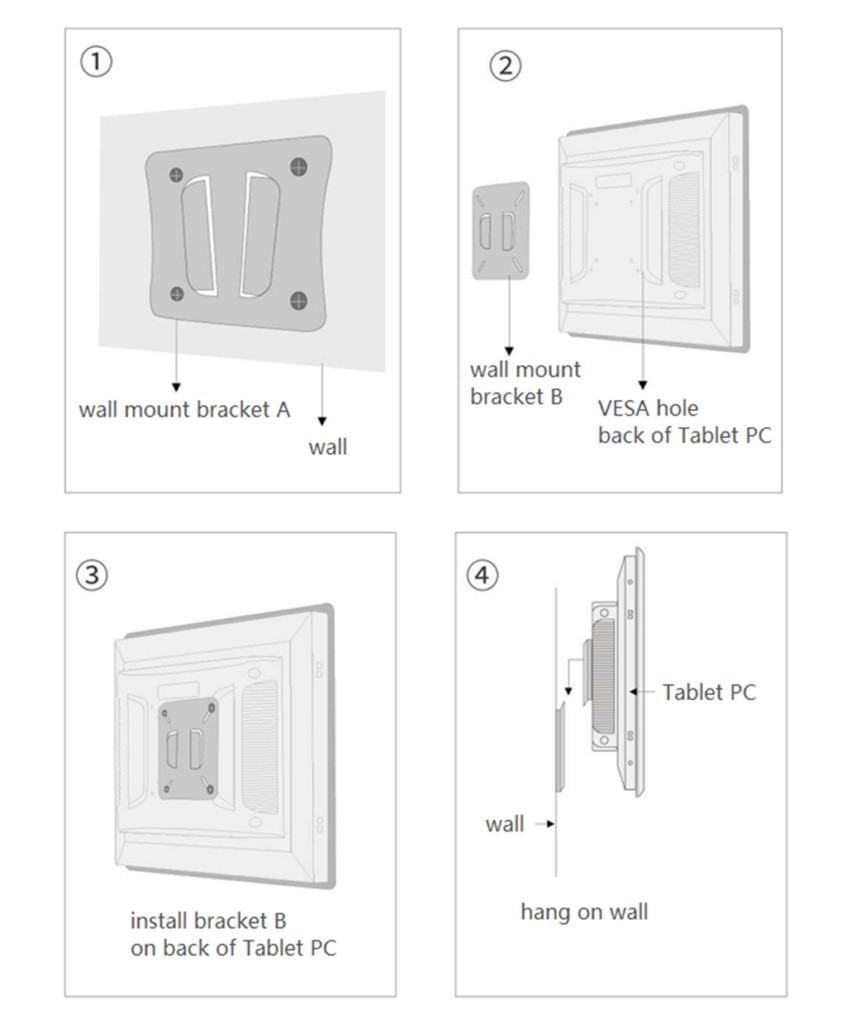

3, VESA Hole Wall-mounted installation: Multi Gold wall-mounted digital signage / touchscreen Monitor series ranging 8” to 100” , which can be hung on the wall, installed on desktop stand, also can be installed on customer’s equipment. With suitable mounting arm, it can be installed in any position for users to watch and operate.
