Industrial Android Linux Mini PC RK3588 RK3576 RK3399 RK3568 | OEM Embedded Box Manufacturer
Additional information
| CPU | RK3399/RK3568/RK3566/RK3288/RK3368/RK3188/A64 |
|---|---|
| RAM/ROM | 1GB/2GB/3GB/4GB RAM, 16GB/32GB/64GB/128GB Optional |
| Operation System | Android 12.0/11.0/9.0/8.1/7.1/6.0/5.1 or Linux |
MULTI GOLD
The embedded box industrial PCs Android / Linux based high-stability and 24/7 operation, which are engineered to be rugged and perform in the most demanding environments. It can be used for measuring, open and closed loop control applications; checking of process and machine data; necessary in building automation, process automation, industrial manufacturing, and other relevant IPC areas.
Product Details:

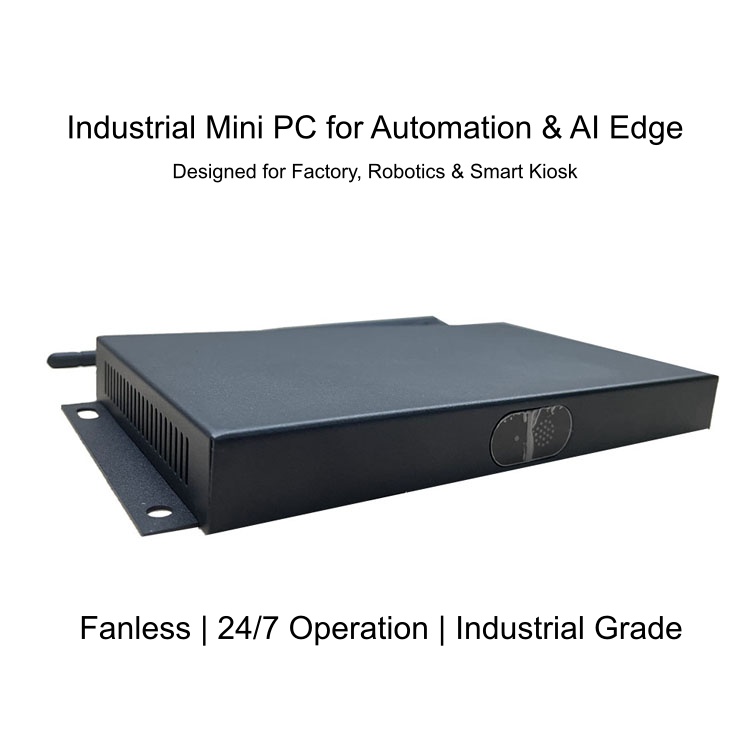

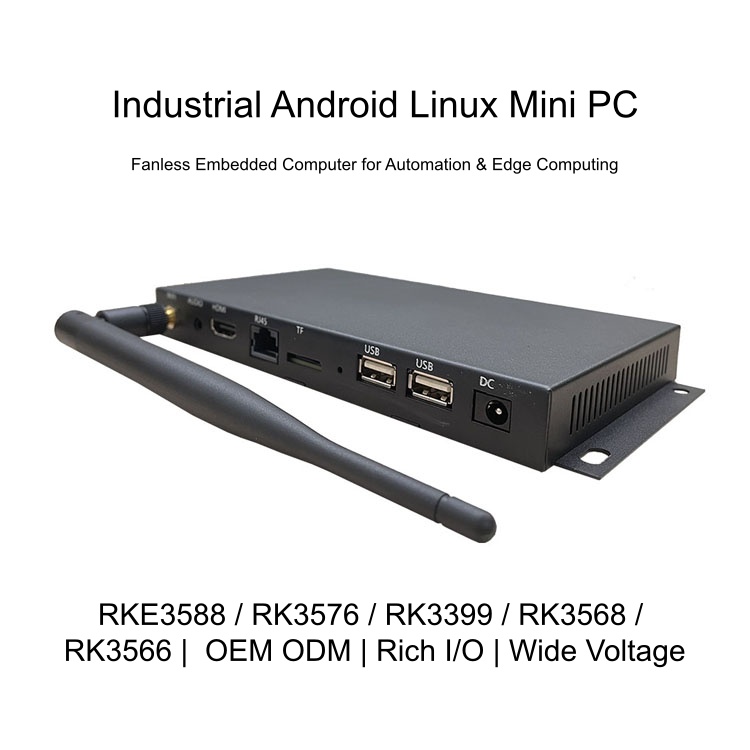

Industrial Android Linux Mini PC for Embedded Applications
Product Overview
This industrial Android/Linux mini PC is designed for OEM embedded applications including industrial automation, AI edge computing, self-service kiosks, smart retail systems and machine control.
Core Features
•Multi CPU Options (RK3588 / RK3576 / RK3399 / RK3568 / RK3566 / RK3288 / A64)
•Android 14.0/13.0/12.0/11.0/10.0/ Linux Debian / Ubuntu Support
•Fanless Industrial Design
•Wide Voltage Input
•Rich I/O Interfaces
•Customizable Firmware & Hardware
Application Scenarios
• Industrial Automation
•Smart Factory Control
•AI Edge Computing
•Retail Kiosk System
•Digital Signage Player
•Robotics Control System
•Smart Agriculture Controller
Why Choose Us
• 10+ Years OEM/ODM Experience
•PCB Custom Design
•Firmware Customization
•SDK Support
•Small MOQ Available
•Global Export Experience
Technical Specifications
•Power Consumption
•Operating Temperature
•Mounting Method
•Certification
•Industrial Grade Level
FAQ
Q1: Can this industrial mini PC support Linux Ubuntu?
Yes, RK3588, RK3576, RK3399, RK3568, RK3288 and RK3566 support Ubuntu and Debian customization.
Q2: Do you provide OEM logo and hardware customization?
Yes, we support full OEM/ODM service including PCB modification.
Q3: Is this mini PC suitable for industrial automation?
Yes, it supports RS232/RS485 and wide voltage input.
| Model | MGIC301 |
| Dimension | 168*95*20mm |
| CPU | Rockchip RK3588/RK3576/RK3399/RK3568/R3566/RK3288, ALLWinner A64 chipset (optional) |
| DDR | 1GB/2GB/4GB/8GB (Optional) |
| Flash | 8GB/16GB/32GB/64GB/128GB (Optional) |
| HD-MI Output | 1*HD-MI 2.1 Output, support max to 4K@60fps |
| Earphone | 1*American standard 4-segment headset integrated 3.5mm socket |
| USB Host | 1*USB2.0 (optional) |
| USB OTG | 1*USB OTG |
| Ethernet Port | 1* 10/100/1000M (optional) |
| WiFi | 2.4G (Optional 2.4G/5G Dual Band) |
| WiFi，BT | WiFi，BT4.0 |
| 4G antenna | 1pcs（Optional） |
| WiFi antenna | 1pcs |
| TF Card | Max 128GB |
| Lighted switch | Reboot |
| Burn key | Firmware upgrade |
| 4G communication | Built-in PCI-E 4G interface |
| SIM seat | Micro-SIM card holder |
| RTC real time clock | Support |
| Timer switch | Support |
| System Upgrade | Support local USB upgrade |
| Operating temperature | 0℃~70℃ |
| Power supply | 9V~15V wide voltage DC |
